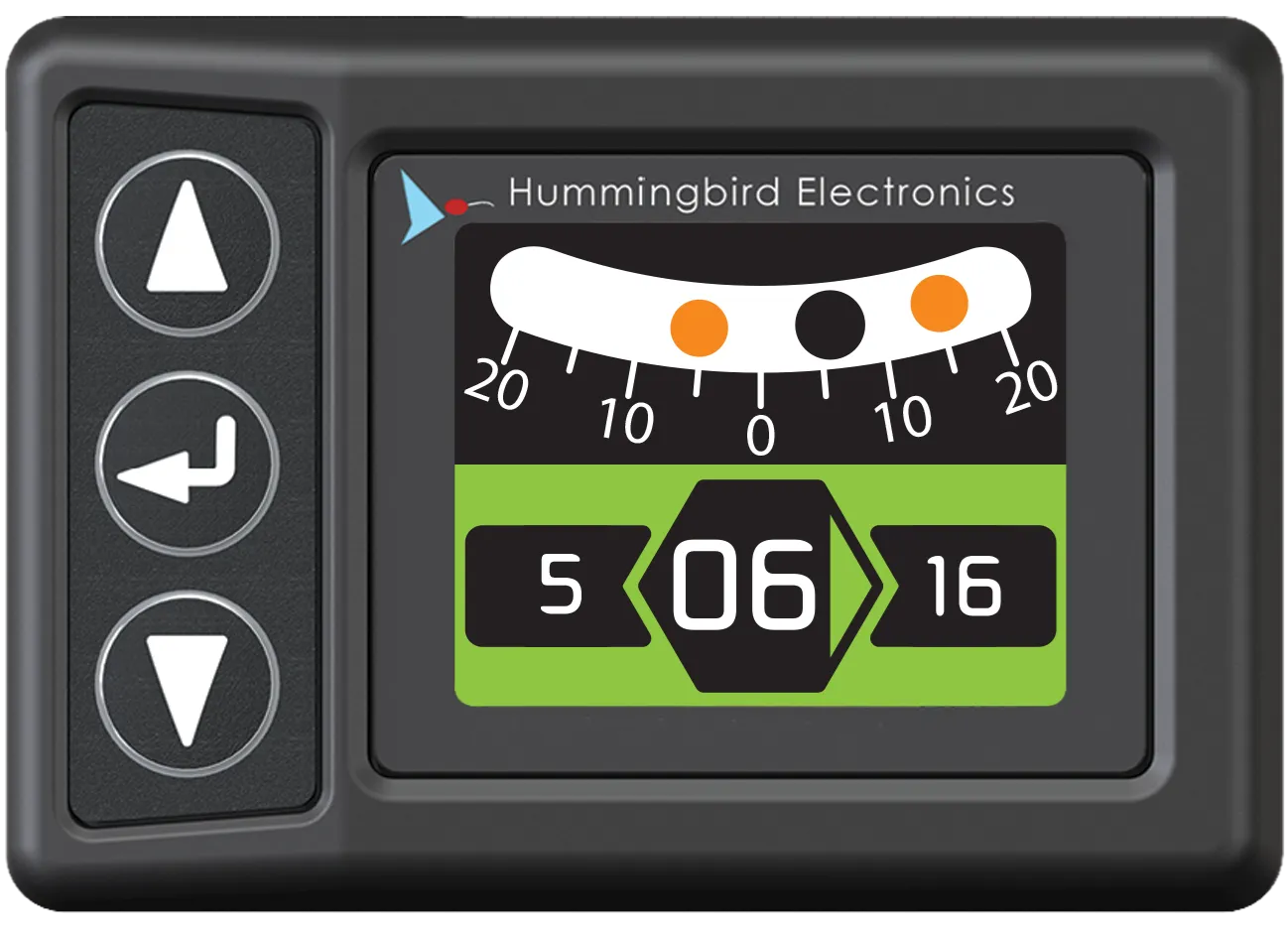

The Hummingbird Electronics Integrated Compact Ball Bank measures and displays the roll of a vehicle or machine.

Hummingbird Electronics Integrated Compact Ball Bank (HMBB0400) is a device that is used to measure roll through the use of an integrated accelerometer.

It features a full-colour screen allowing for easy interpretation of roll angle up to 20 degrees. There is no external sensor and the screen will update roll measurements ten times a second.

It requires no costly installation and is operated by simply plugging into a cigarette adapter or directly connecting to power and ground. It is also multi-voltage and can work in both 12 and 24V vehicles.

In-built warning and alarm levels are configurable to a predetermined angle when the roll exceeds this angle the alarm will sound, and a visual warning will appear on the display.

The sensitivity function allows the user to set how sensitive the device is. A higher value will cause the device to be very resistant to quick changes in acceleration like a rough road for example, whereas setting the sensitivity to a lower value will cause the device to be sensitive to changes in acceleration.

Features

Roll measurement
Configurable warning and alarm levels
Full-colour display
Sensor damping configurable
Internal buzzer
Rugged RAM mounting system
Multi-Voltage

Mounting System	Windshield Mount
Input Voltage	9-32V
Power Consumption	<1W
Sensor Resolution	1 Degree
Sensor Accuracy	3 Degrees
Operating Temperature	-40°C to 85°C; 5% to 95% relative humidity
Width (mm)	70
Length (mm)	50
Height (mm)	19
