Product Details
＋

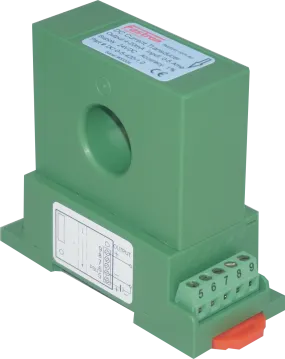

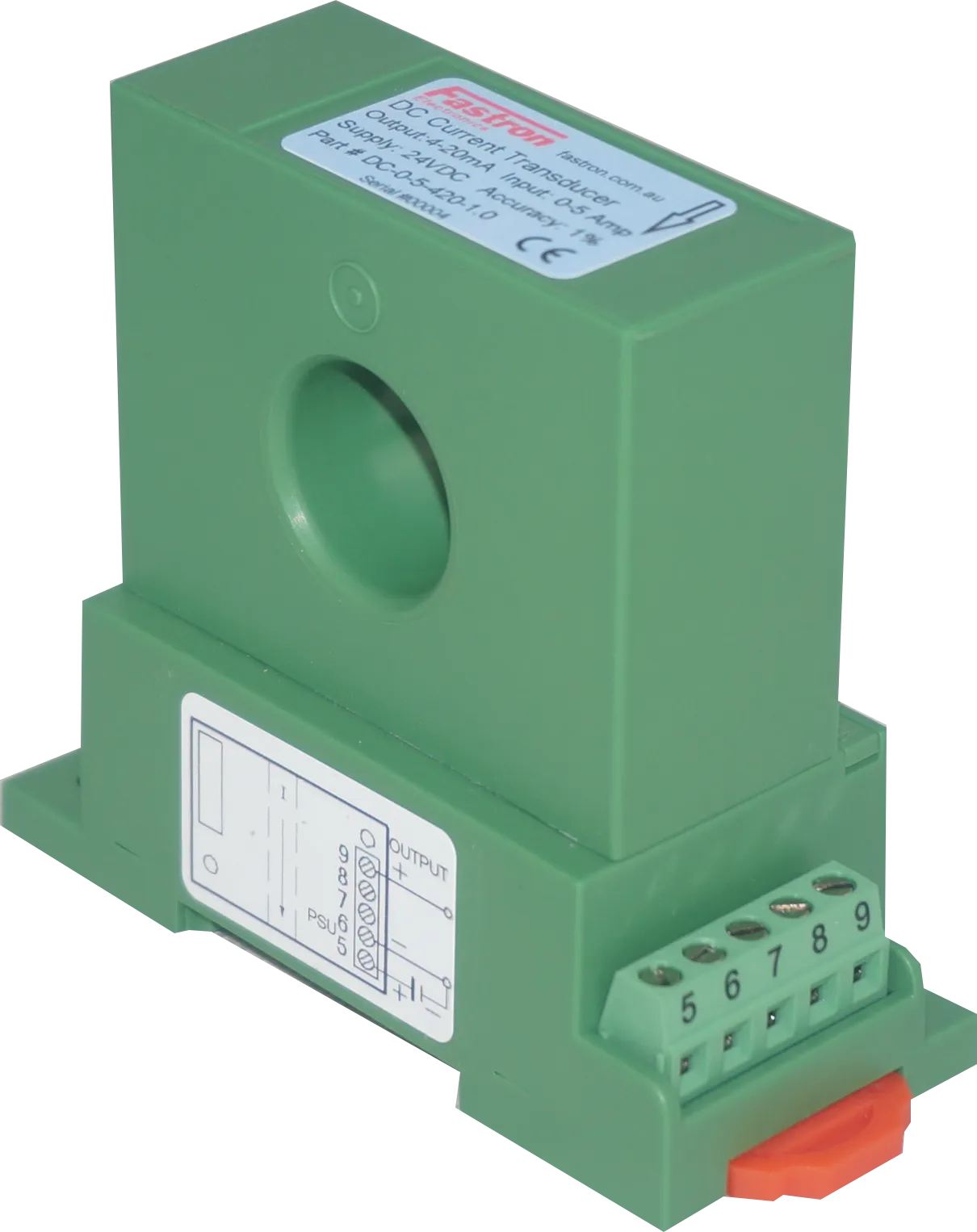

DC-0-200-010-1.0, Hall Effect DC Current Transducer, 0-200 Amp DC, 0-10V Bipolar output, 24VDC supply
Compact and versatile Split Core DC current sensor, 0-200 Amp DC, 4-20 mA Bipolar Output
Other measurement ranges available on request
Features
- ⌀20mm Aperture
- DC Bipolar Measurement
- 0-10V analogue output
- Busbar, or DIN Rail Mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Kit available
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will not drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| Fastron Part Number | DC-0-200-010-1.0 |
| Technology | DC Hall Current Sensor with Process Output |
| ROHS | Yes |
| Supply Voltage | 24VDC |
| Nominal Current (DC) | 0-200 Amp |
| Response Time | < 1uS |
| Output | Bipolar 0-10V |
| Isolation | 2.5kV (AC, 50Hz, 1 min) |
| Bandwidth | DC |
| Mounting Style | DIN Rail Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | Elevator Terminals |
| Unit Weight | 120g |
| Factory Pack Qty | 6 |
