Product Details
＋
Smart and Robust Indoor Lighting
- Robust and Visually Appealing Design: Modern and durable construction for stylish and reliable lighting solutions.
- Advanced LED System: Integrated Bluetooth Mesh Technology ensures seamless connectivity and smart control.
- Innovative HF Sensor: Intelligent motion detection for energy-efficient lighting.
- Flexible Lighting Options: Offers warm white and neutral white lighting with up to 3200 lumens for diverse needs.
- Versatile Functions: Includes backlight, ambient light, and a battery-operated emergency light for added security and convenience.
- Customisable Settings: Easily adjust overrun time and connect to area groups for tailored control.
- Smart Control: Conveniently manage all settings via the Steinel APP for effortless operation.
- Perfect for Large Areas: Ideal for architects, system integrators, and electrical engineers, suitable for both commercial and residential projects.
----------
Smart Ceiling or Wall Light with Wireless Control
The RS PRO R20 Basic SC sensor-switched light brings together advanced technology and effortless functionality, offering an elegant solution for connected lighting in modern spaces. Its sleek design and versatile features make it perfect for a variety of commercial and residential applications.
- Wireless Adjustments via App: Easily start up, interconnect, and customise settings using the Steinel App.

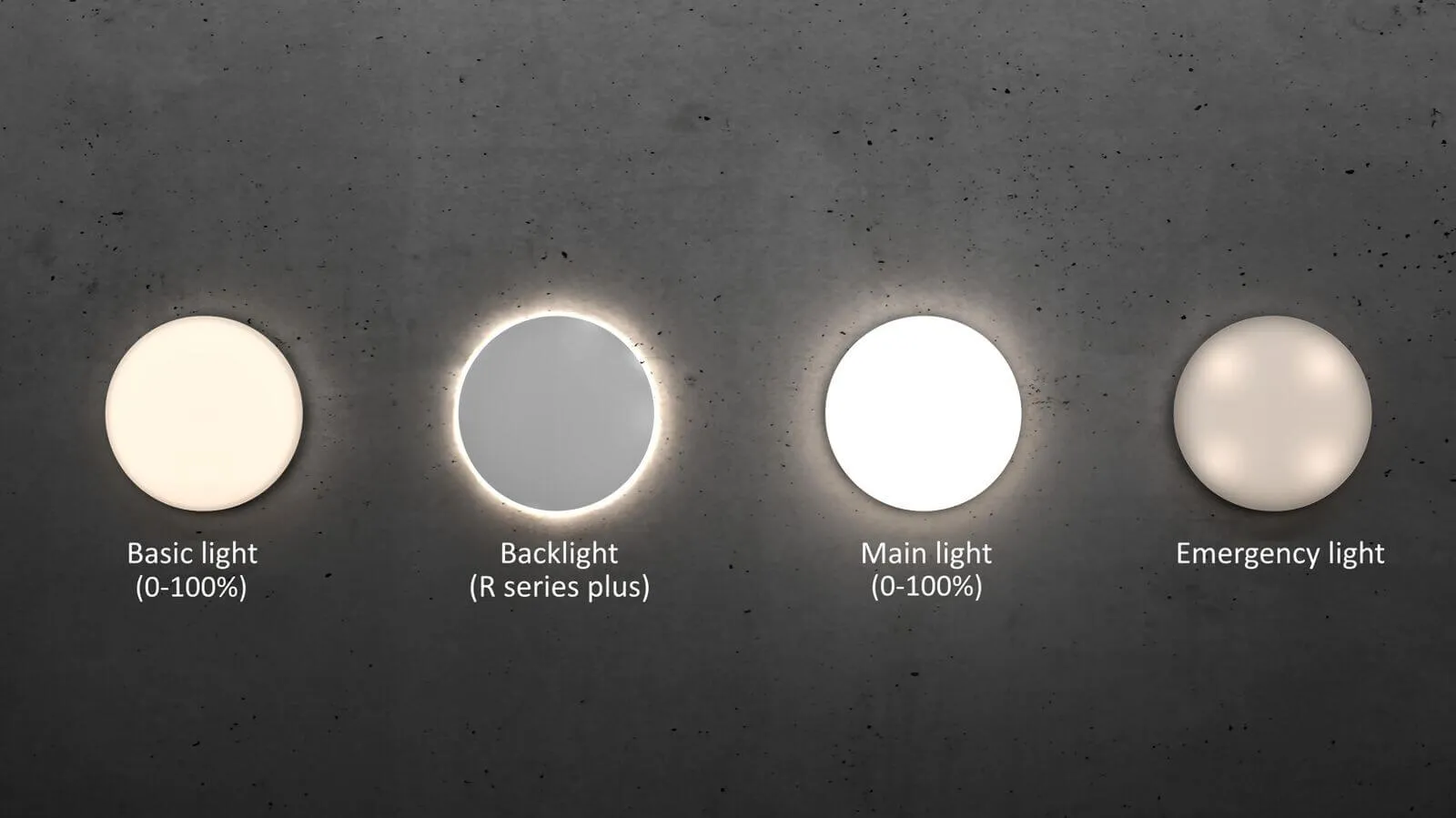

- Versatile Lighting Functions: Includes basic light level, dimmable main light, and emergency light settings for ultimate flexibility.
- High-Precision HF Sensor: Delivers accurate motion detection with a 10 m reach, ensuring optimal energy efficiency.
- Even Light Distribution: Opal diffuser bonnet ensures smooth and uniform lighting across any space.
- Eco-Friendly Design: Compact multipack packaging reduces material use, minimising environmental impact.
- Technical Specifications: 15.3 W, 1823 lm, 3000 K, 350 x 55 mm; compatible with central battery systems for emergency lighting operation.
The RS PRO R20 Basic SC is a cutting-edge lighting solution, providing energy-efficient and modern illumination for commercial and residential spaces.
----------
| General Information | |
|---|---|

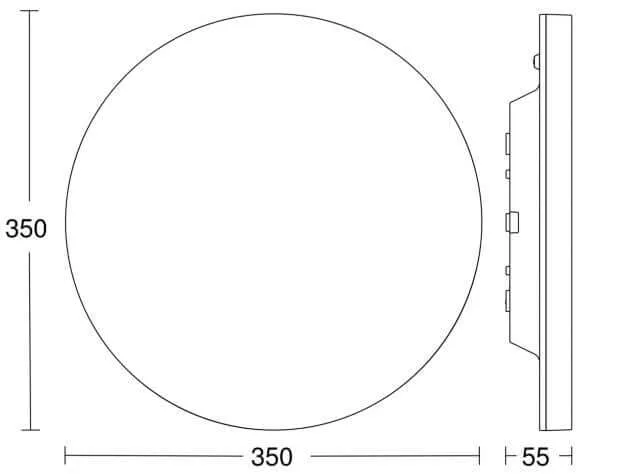

| Dimensions (Ø x H) | 350 x 55 mm |
| With lamp | Yes, STEINEL LED system |
| With motion detector | Yes |
| Manufacturer's Warranty | 5 years |
| Settings via | Bluetooth |
| With remote control | No |
| Version | Warm white |
| PU1, EAN | 4007841067854 |
| Application, place | Indoors |
| Application, room | Corridor / aisle, changing room, function room / ancillary room, kitchenette, stairwell, indoors |
| Colour | White |
| Electrical Specifications | |
|---|---|
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Power consumption | 0.3 W |
| Output | 15.3 W |
| Fuse protection B10 | 46 |
| Fuse protection B16 | 74 |
| Fuse protection C10 | 77 |
| Fuse protection C16 | 122 |
| Starting current, maximum | 13 A |
| Sensor Technology | |
|---|---|
| Mounting height max. | 4.00 m |
| HF-system | 5.8 GHz |
| Slave mode selectable | Yes |
| Detection | Also through glass, wood, and stud walls |
| Capability of masking segments | Yes |
| Electronic scalability | Yes |
| Reach, radial | Ø 10 m (79 m²) |
| Reach, tangential | Ø 10 m (79 m²) |
| Detection angle | 360° |
| Housing | |
|---|---|
| Impact resistance | IK07 |
| IP-rating | IP40 |
| Protection class | II |
| Ambient temperature | -20 – 40 °C |
| Housing material | Plastic |
| Cover material | PC, opal |
| Luminaire | |
|---|---|
| Photo-cell controller | Yes |
| Luminous flux total product | 1823 lm |
| Total product efficiency | 119 lm/W |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
| Lamp | LED cannot be replaced |
| Soft light start | Yes |
| Continuous light | Selectable |
| Lifetime LED (IEC-62717 L70) | 100,000 hours |
| Lifetime LED (IEC-62717 L80) | 74,000 hours |
| Functions | |
|---|---|
| Functions | Group parameterisation, Manual ON / ON-OFF, Neighbouring group function, Orientation light, Motion sensor, Light sensor, Encrypted communication, Free selection of light value in luminaire group, Adjustable fade time when switching on and off |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 s – 60 min |
| Basic light level function | Yes, LED effect light |
| Main light adjustable | 0 - 100% |
| Twilight setting TEACH | Yes |
| Connection | |
|---|---|
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection via | Bluetooth Mesh Connect |
----------
