Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Backlighting | Backlight |
| Communication | Modbus and Other Automation Mfrs. |
| Current Consumption | 30 A |
| Current Rating | 30 A |
| Depth | 0.925" (23.5mm) |
| Dimensions | 104.5 x 65.5 x 23.5 mm |
| Display Colors | Monochrome |
| Display Resolution | 240 x 96 Pixels |
| Display Size | 3.4 Inch Display |
| Family Name | Magelis HMI & iPC Family |
| For Use With | PLC |
| HMI Type | Touch Screen HMI |
| Length | 4.114" (104.5mm) |
| Maximum Operating Temperature | 50 C |
| Minimum Operating Temperature | 0 C |
| Mounting Type | Chassis Mount |
| Number of Ports | 5 Port |
| Port Style | USB, RS232C, RS485 |
| Primary Type | Operator Interface |
| Processor Type | RISC |
| Resolution, Display | 200 × 80 |
| Series | |
| Supply Voltage | 24VDC |
| Technology | STN LCD Display |
| Temperature Operating Range | 0 to 50 C |
| Type | Monochrome |
| UPC Code | 785901655817 |
| Voltage Rating | 24 VDC |
| Width | 2.579" (65.5mm) |
Overview

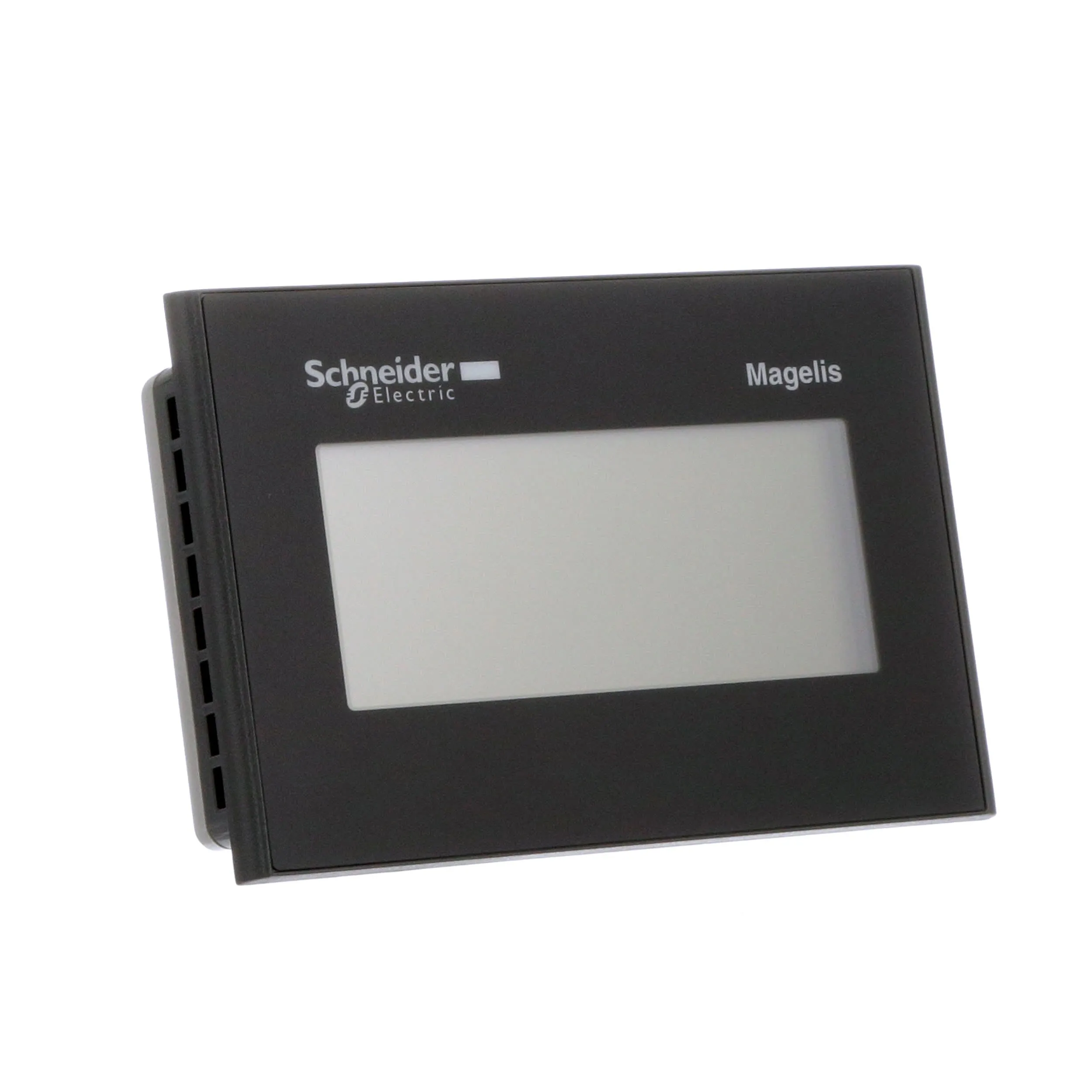

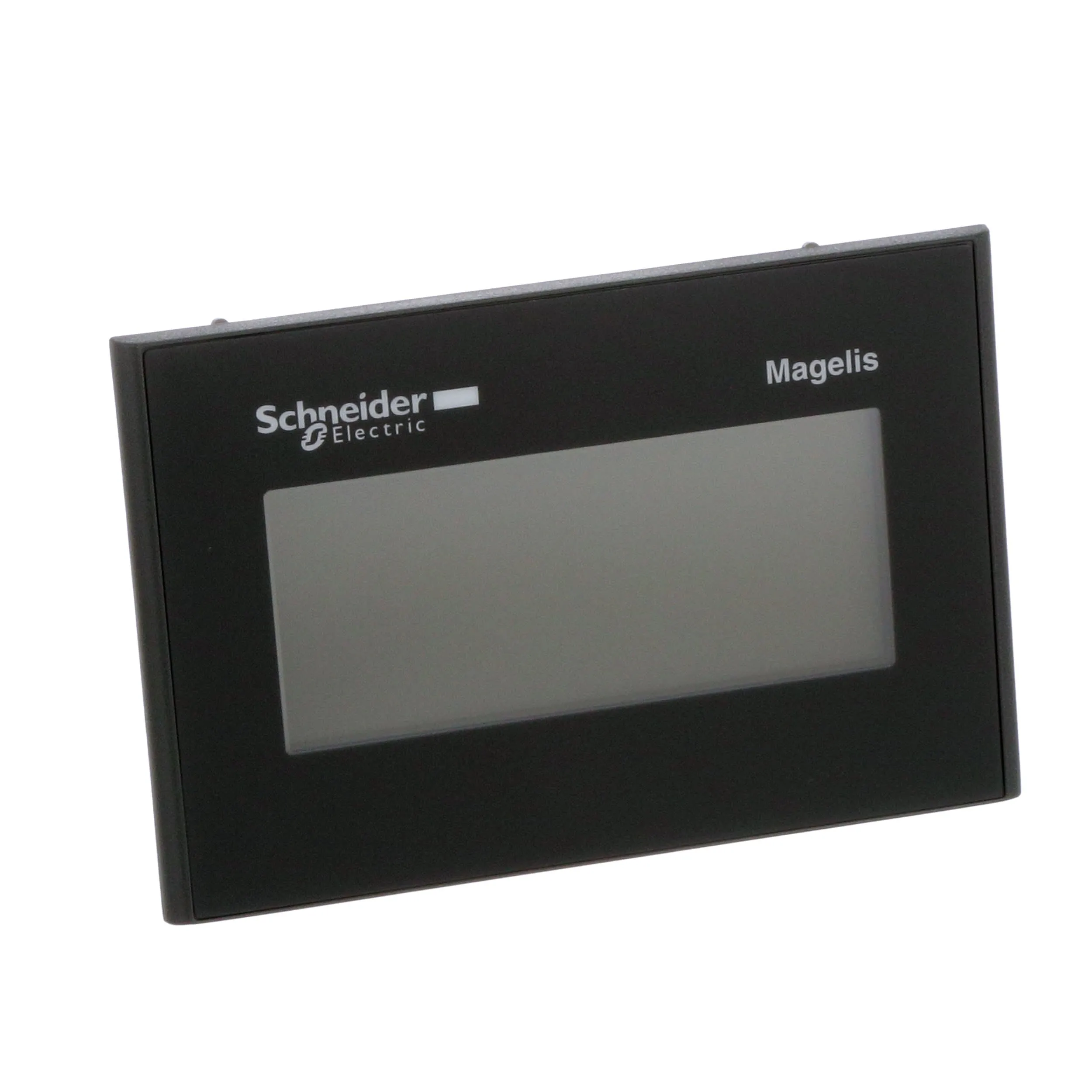

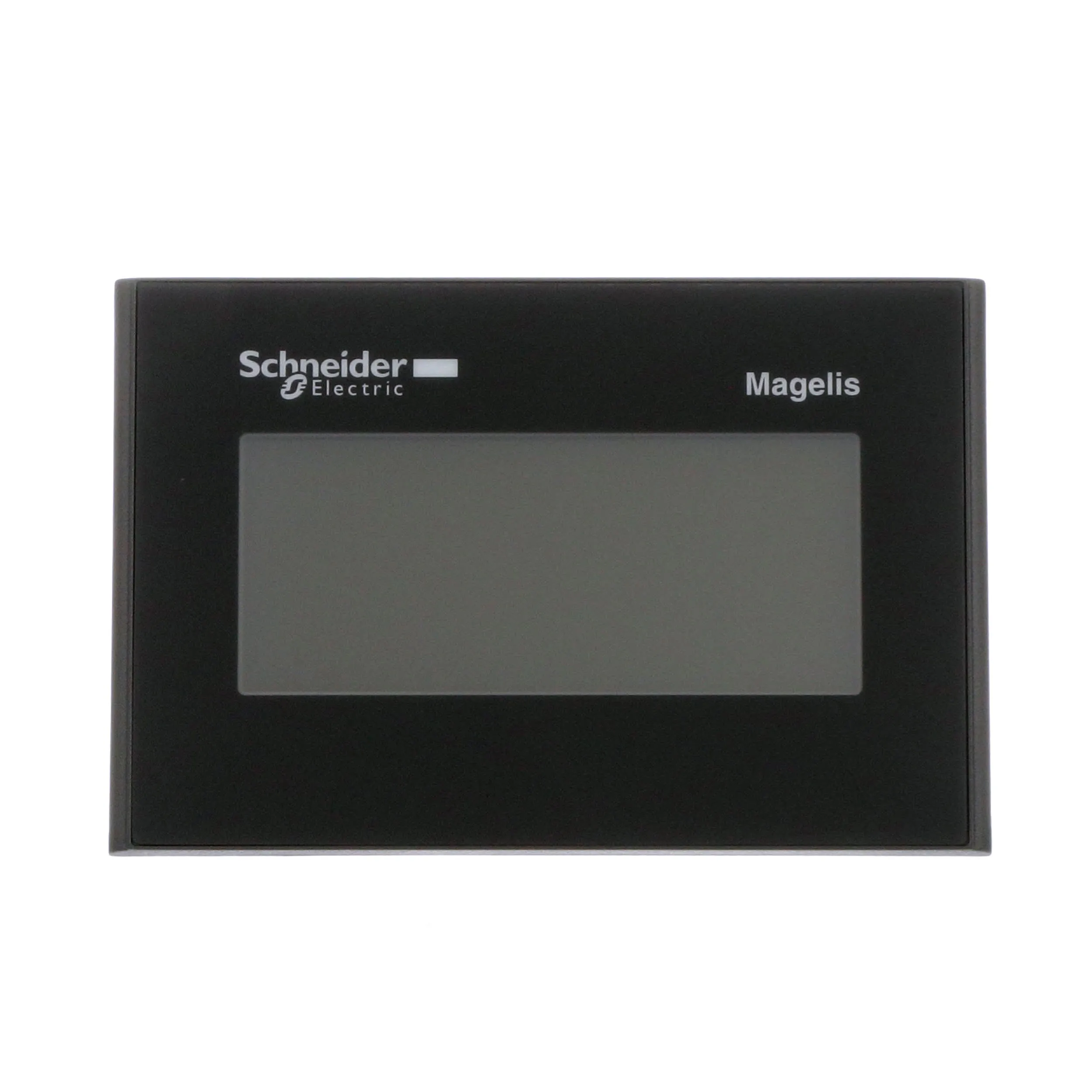

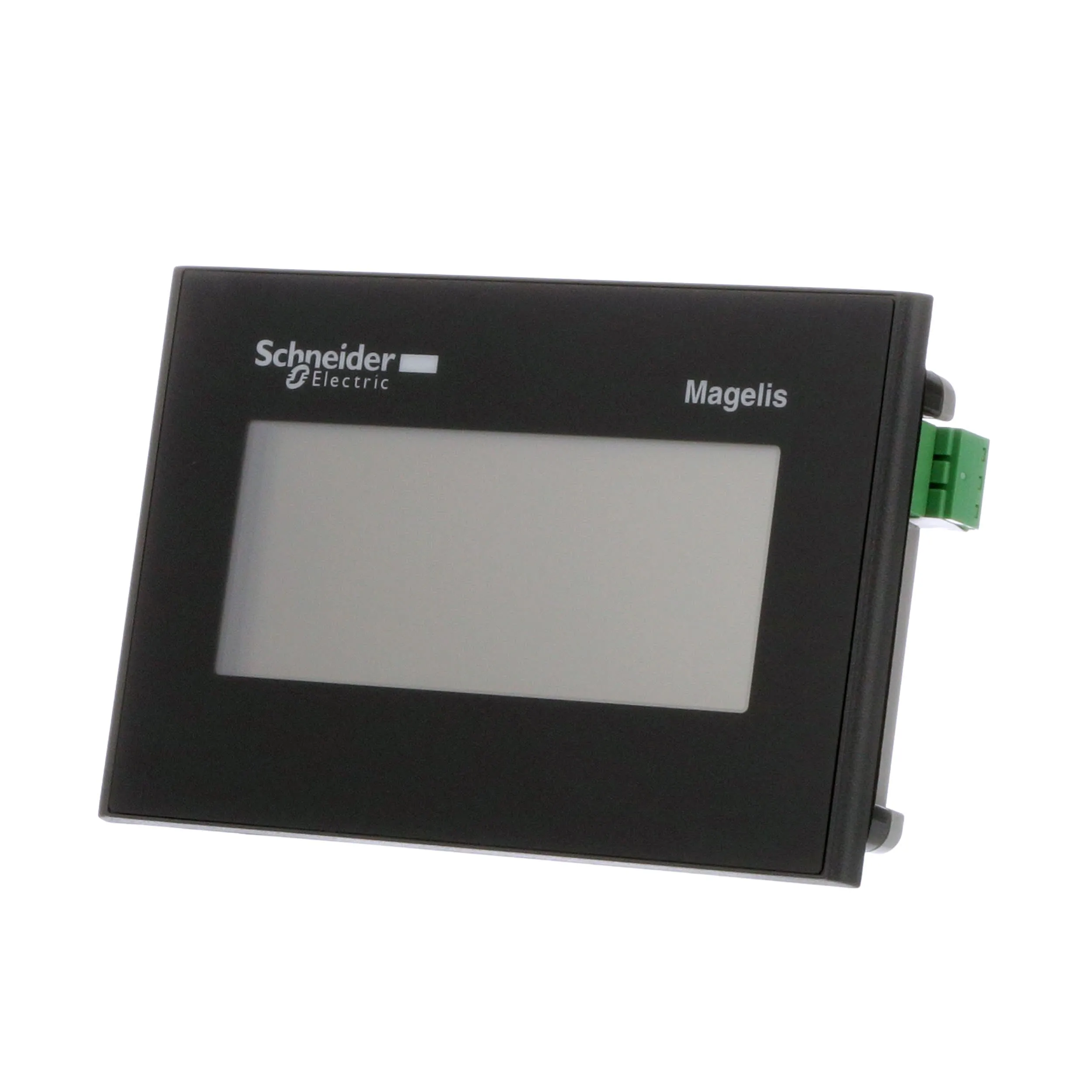

Schneider Electric Magelis STO & STU Series - Small Touchscreen Terminal Optimum HMIs:
Magelis STO and STU are a range of compact HMI that are a cost-effective solution for machine builders. The Magelis STO is a compact, panel-mounted HMI that bring a cost-effective solution to machine builders. With its 4.3-inch touch-screen display, it is a great fit for small, compact or simple machines.
Magelis HMI STO is an ultra-compact basic touchschreen HMI. Despite its small size, it is packed with features. It is a great fit for simple applications. Magelis HMI STU with its modular design saves installation time due to the innovative mounting via 22mm hole. It is a great fit for machine builders.
Features:
