Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Application | Industrial |
| Approvals | CE Marked, EN 61326-1 Immunity to Industrial Locations, Emission CISPR 11 Class B, IEC⁄EN 61010-1, IP20 (Rear of Unit), IP65 (Face Only), RoHS Compliant, Type 4X (Face Only), UL Recognized Component: File E179259 |
| Bezel | NEMA 4X⁄IP65 Sealed Front Panel |

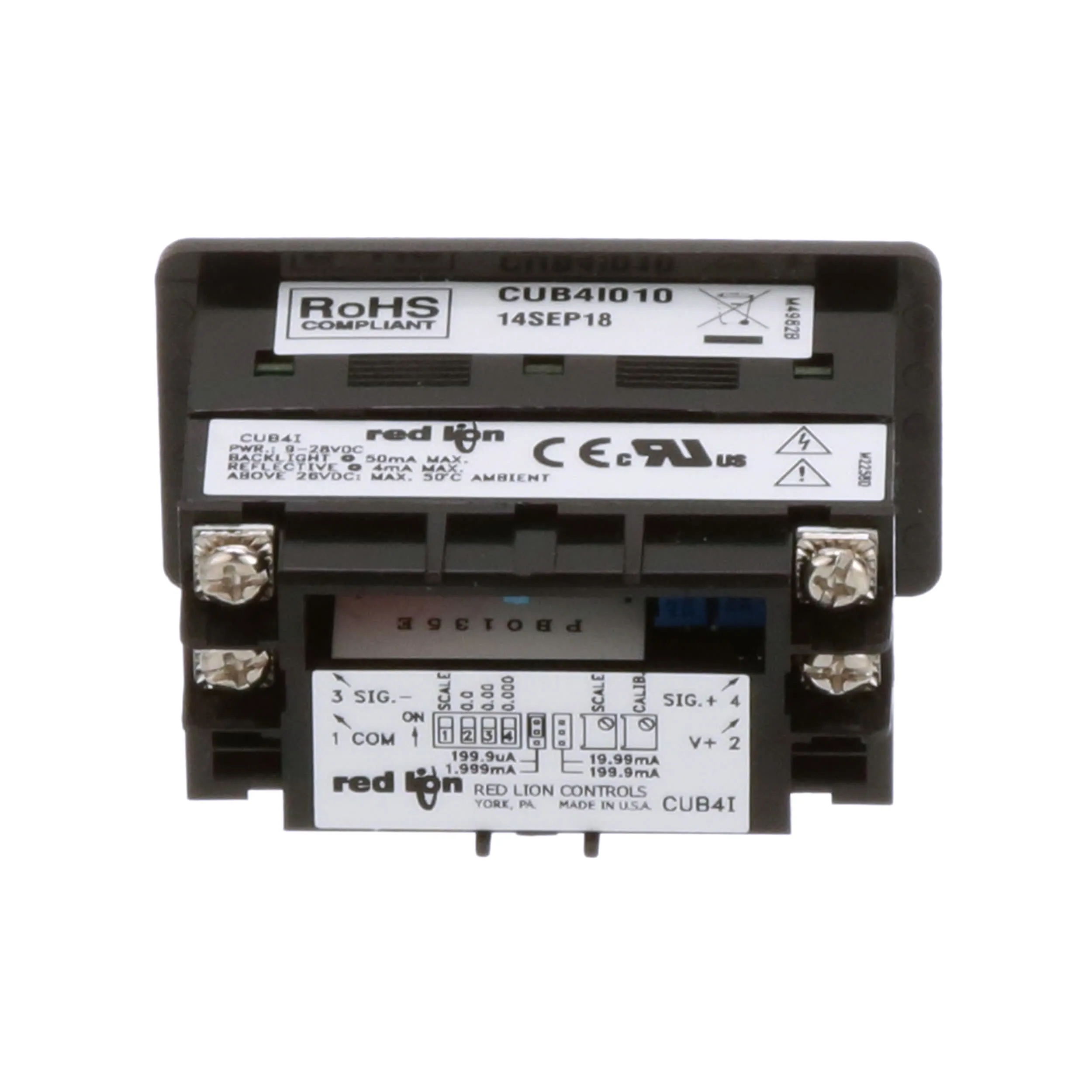

| Connection Type | Screw-Clamp Terminals |
| Counter Type | Miniature Electronic |
| Cut Out, Panel | 2.68 L x 1.30 H in., 68 L x 33 H mm " |
| Depth | 0.157" (4mm) |
| Dimensions, Cutout, Inches | 68 W x 33 H mm |
| Display Digit Height | 15.2 mm |
| Display Range | -1999 to 1999 |
| Display Type | LCD |
| Function | Counter |
| Maximum Operating Temperature | 60 °C |
| Measurement Range | -1999 to 1999 (Scale), 0 μA to 199.9 μA, 0 mA to 1.999 mA, 0 mA to 19.99 mA, 0 mA to 199.9 mA |
| Measuring Range | ±199.9 μA dc to ±199.9 mA dc |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Panel Mount |
| Number of Digits | 3.5 Digits |
| Operating Temperature, Maximum | 60 °C |
| Operating Temperature, Minimum | 0 °C |
| Primary Type | Electronic |
| Series | |
| Supply Voltage | 9 to 28 VDC |
| Temperature Range | 0 to 60 °C |
| Temperature, Opening, Maximum | 60 °C |
| Type | Electronic |
Overview

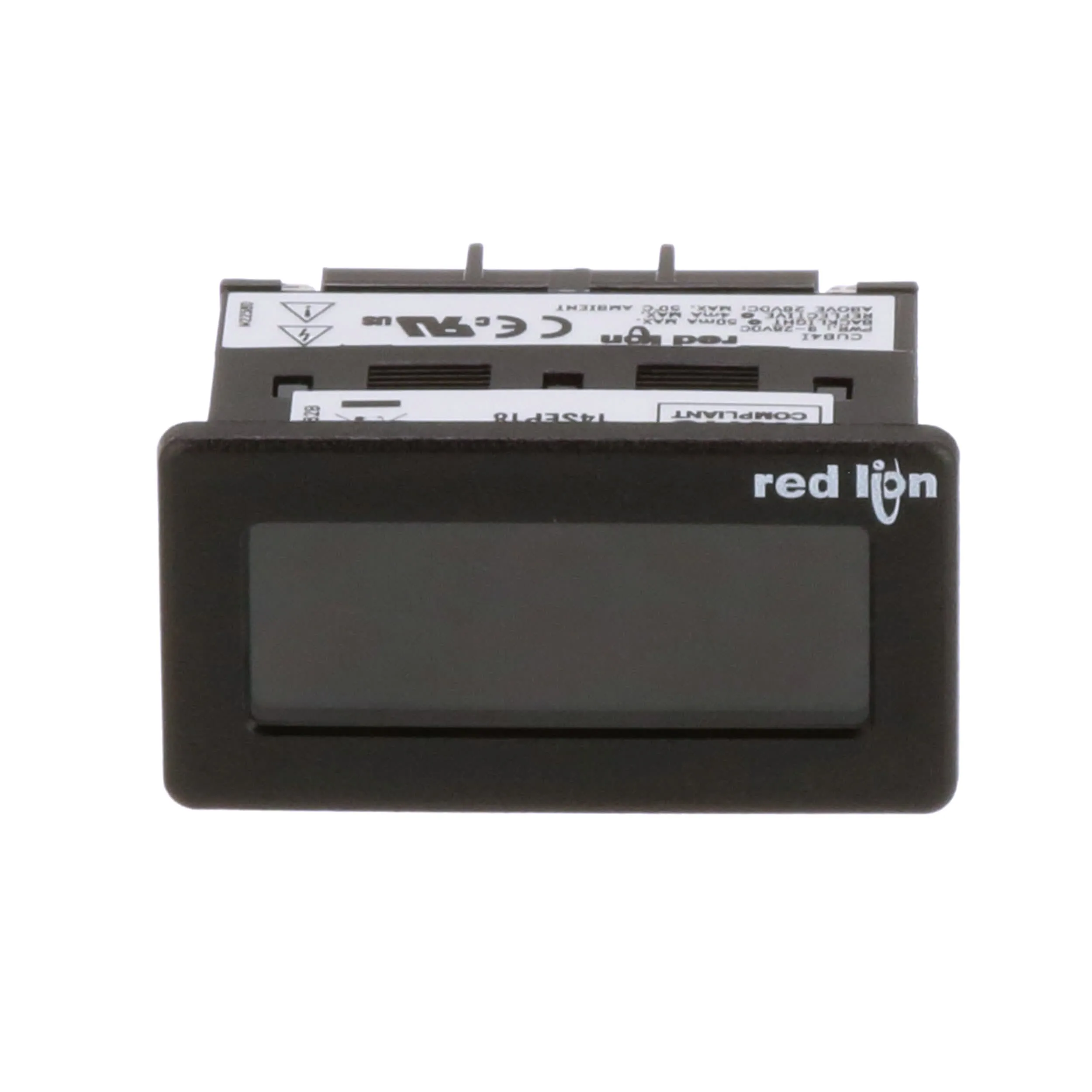

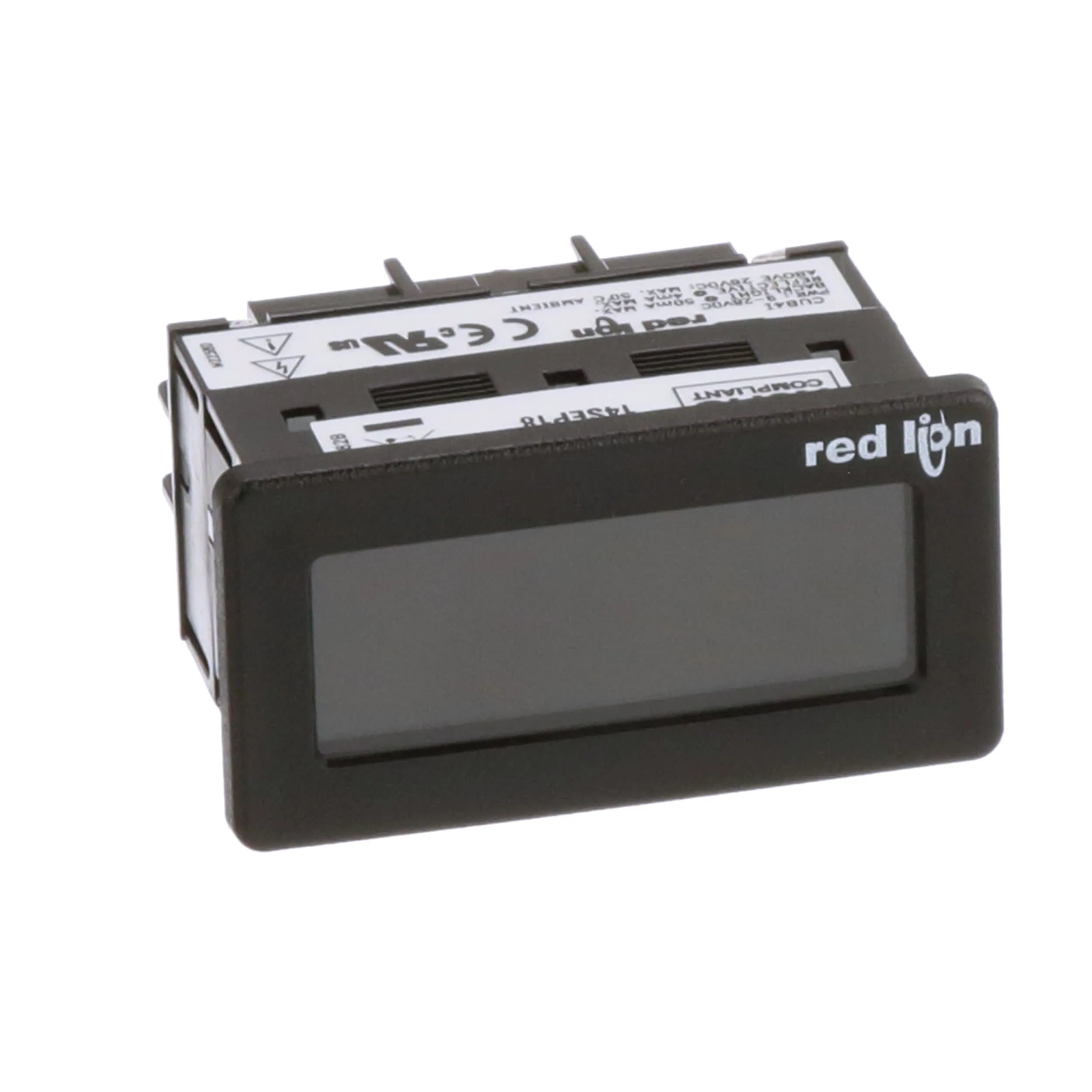

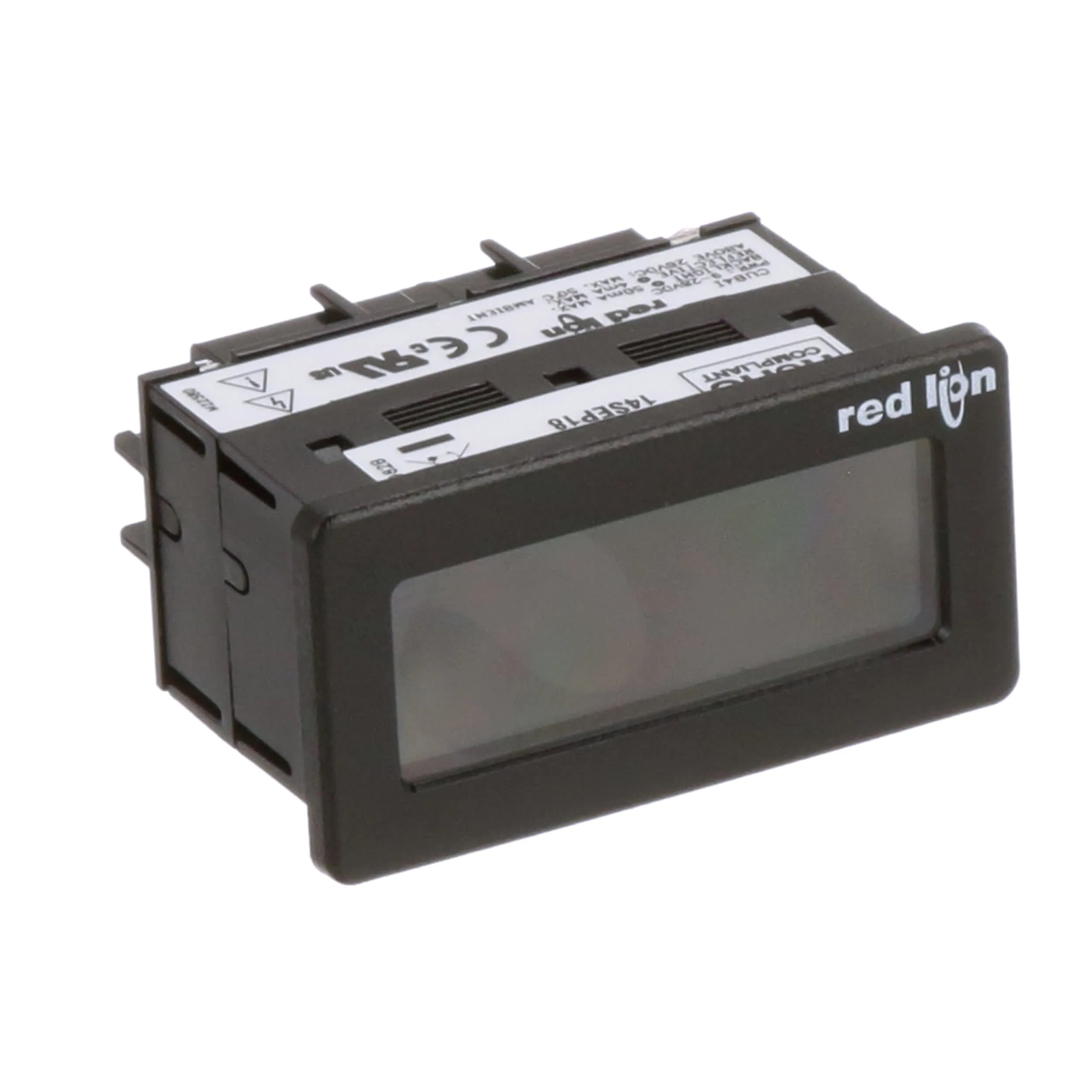

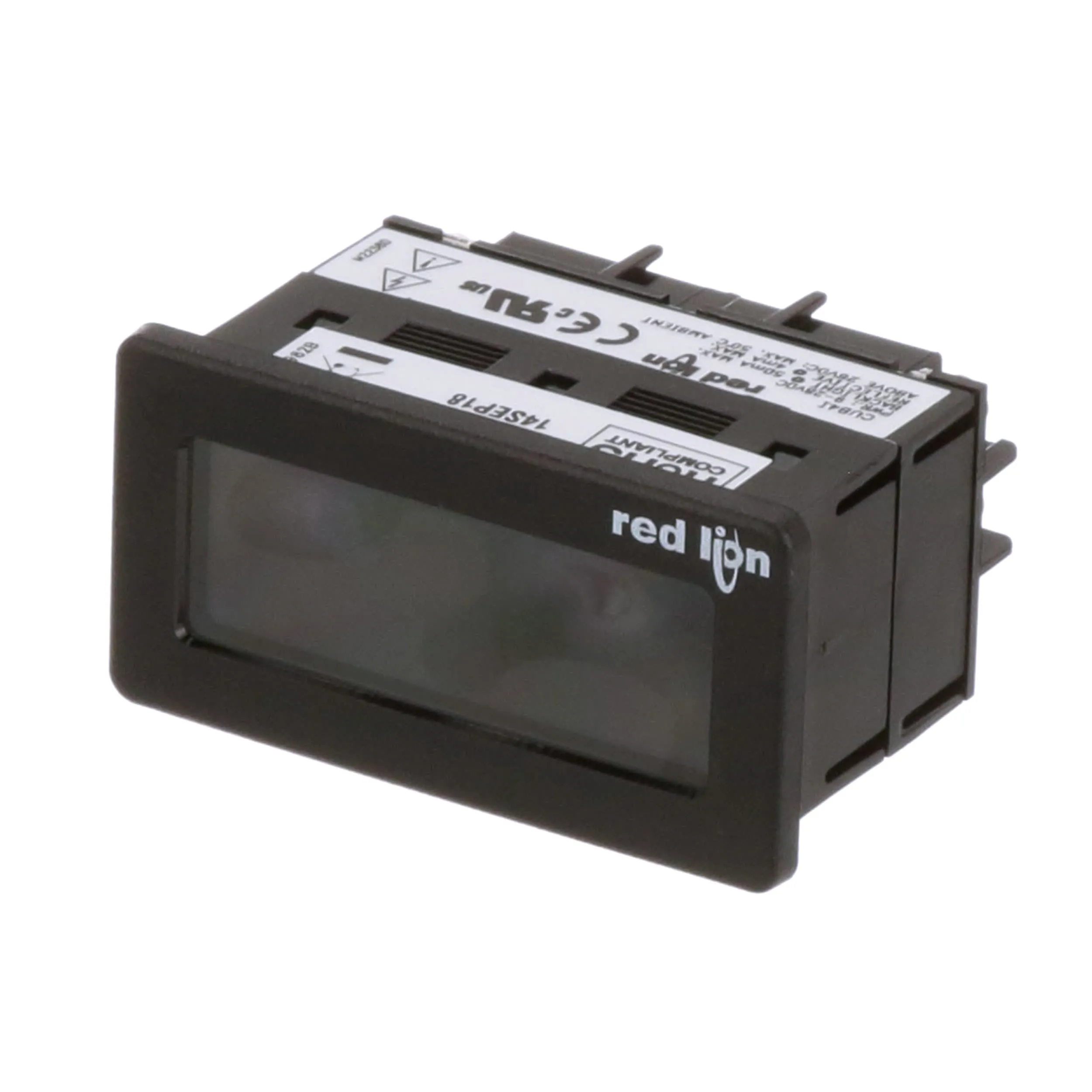

The CUB4 panel meters are manufactured using the latest technology for high quality, compact, affordable instrumentation for use in industrial environments. Each unit has a 3.5 digit LCD display with 0.6" high digits and a DIP switch selectable decimal point. The displays are available in positive image reflective (black digit, reflective background) or negative image trans-missive (illuminated digits, dark background) with red backlight.
CUB4V/I/LP Features:
