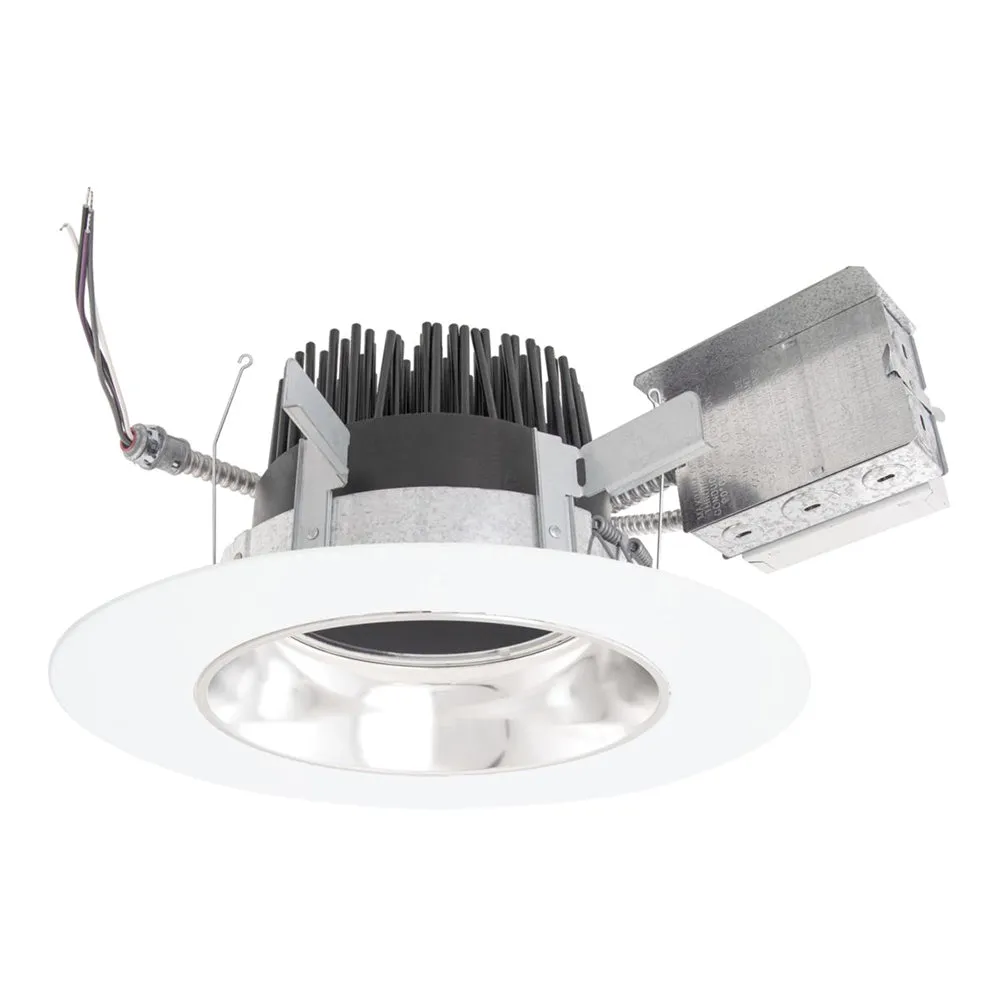

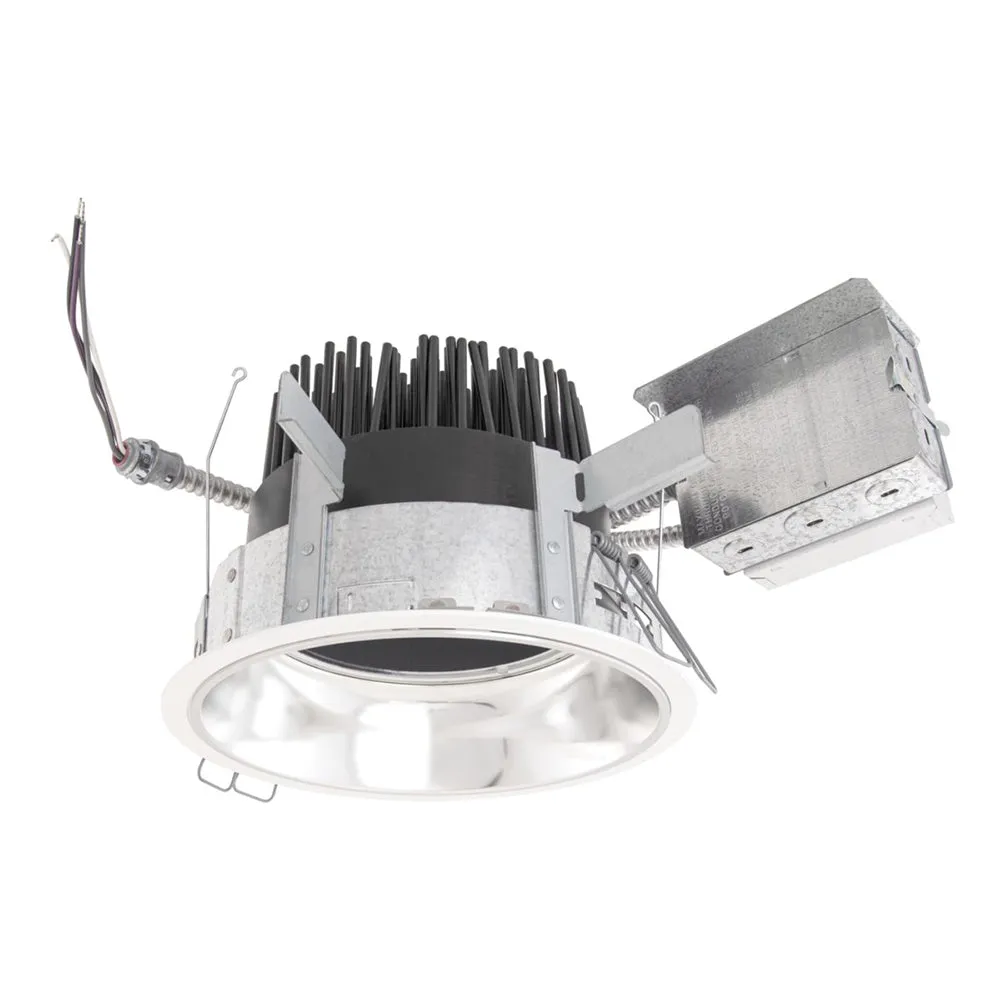

Portfolio Lighting LDRT8B LED 8" Round Recessed Retrofit Downlight

The 8" install from below recessed retrofit downlight, also available as an open wall wash luminaire, is designed with a two-stage system producing smooth distribution with excellent light control and low aperture brightness. The luminaires are available in narrow, medium and wide beam distributions with light output of up to 20,000 lumen. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.

Taking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.

• Retrofit, remodel, install from below, downlight or wall wash
• Excellent light control and low aperture brightness
• Available for shallow or standard plenums, ENERGY STAR® qualified
• Spun aluminum reflectors in a variety of finishes
• 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
• CRI: 80, 90 or 97, D2W™ option from 3000K to 1850K
• W2N Tunable White 2700K-6500K or 2000K-5000K
• Lumens: 1,000-20,000, 0-10V dimming down to 1%
• WaveLinx and DLVP connected lighting systems compatibility
• 5-year warranty
