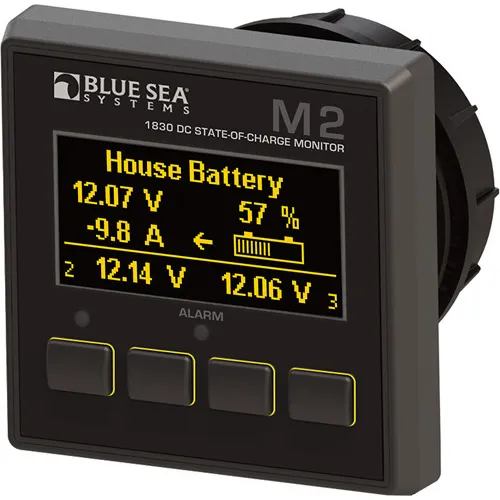

Name: M2 DC SoC Monitor
SKU: 765239

Product Details ＋

Accurately measure and monitor the state-of-charge of your batteries. Supports programmable shunt ratios.

Accurately measures and monitors State-of-Charge of 1 bank

Measures 3 voltages and 1 current

Supports programmable shunt ratios

External relay activation

Specifications:
Meter: Current State-of-Charge Voltage
Function: 8 to 70V to 5000A
Maximum Voltage: 12V 24V 48V
Resolution: 0.01V DC
Alarms: High Current, High/Low Voltage, Low Battery
Current Range: -500 to 500A
Display Size: 55mm x 28mm
Input Voltage: 7-70V DC
Maximum Power Consumption: 1.00 Watt
Minimum Power Consumption: 0.3 Watt
Voltage Accuracy: ± 1.0%
Weight: 0.25lb (0.11 kg)
