Features:

10 Channel Memory HiLogger

• Record measurement data on a USB flash drive for easy transfer to a computer
• Record to reliable Compact Flash cards during long-term measurement applications for increased peace of mind
• Replace storage media during real-time recording
• Improved thermocouple measurement accuracy and reference junction compensation accuracy
• Ten isolated analog input channels
• 10 ms sampling and recording across all channels
• Noise-resistant measurement circuitry for improved readings
• Ultra-compact for convenient portability
• Widescreen, bright LCD gives excellent viewability

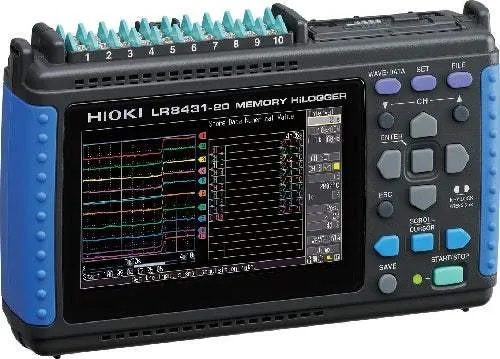

Hioki Memory HiLoggers are high-speed data loggers for recording multiple chanels of voltage, temperature, pulse or rotation signals, providing complete isolation between channels and strong noise resistance . The LR8431 logs data at 10ms speeds across 10 channels simultaneously, and features a bright color LCD for crystal clear waveform displays.

The LR8431-20 delivers improved thermocouple measurement accuracy and reference junction compensation accuracy.

Example: When measuring 50°C water with a type-K thermocouple, The LR8431-20 provides improved accuracy of ±1.5°C, whereas previous models provided accuracy of ±3°C.
