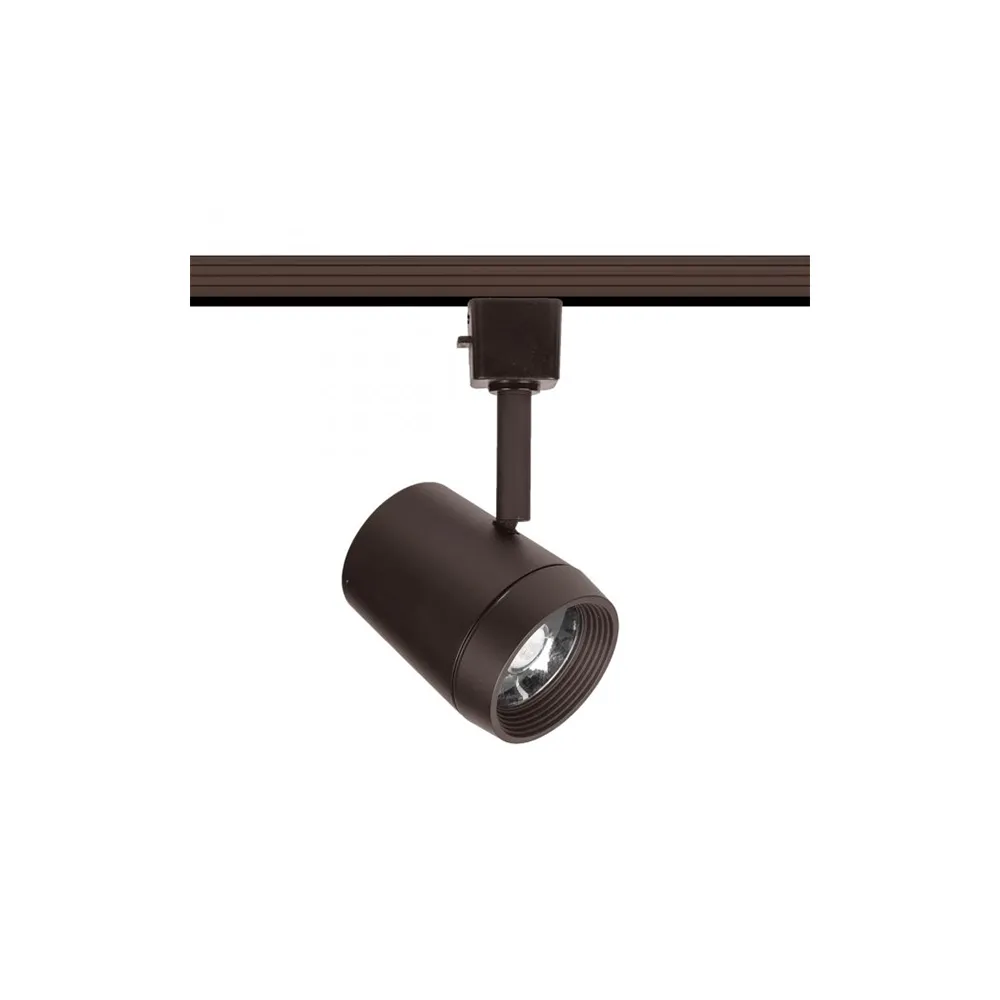

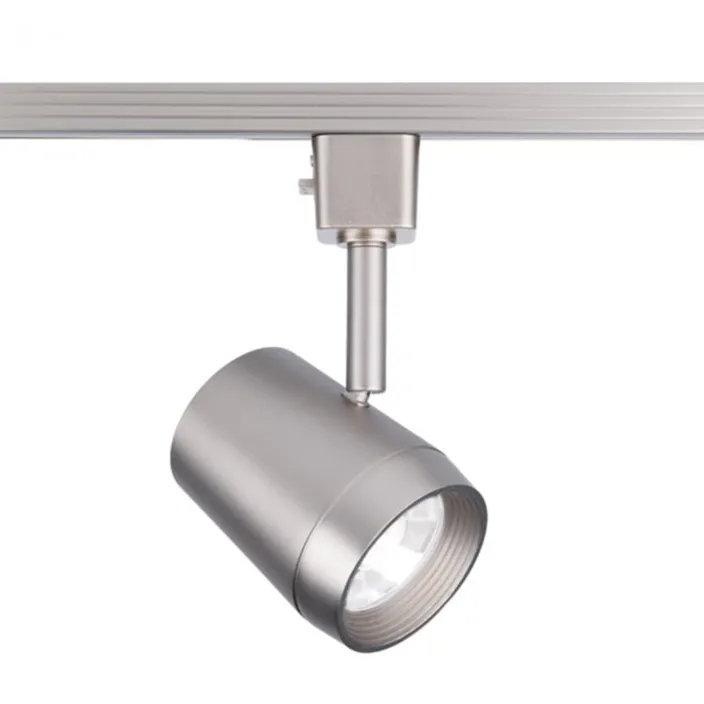

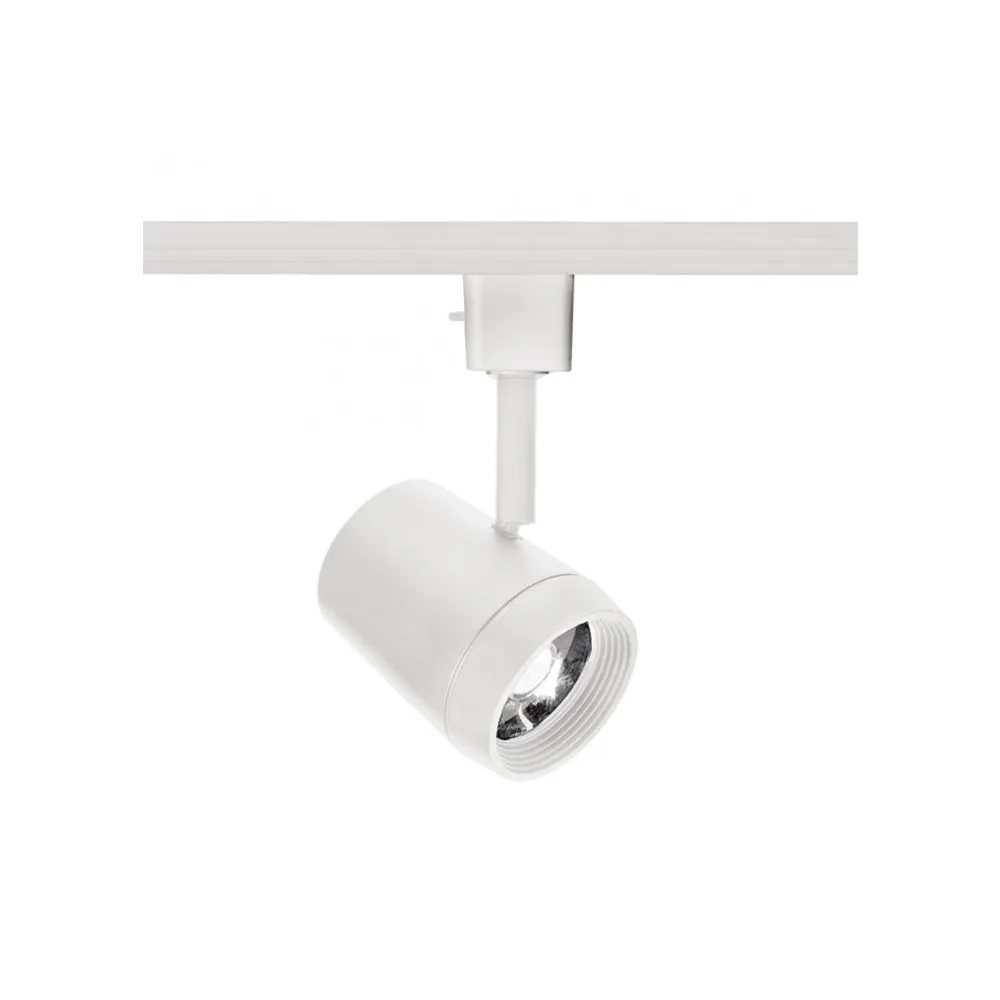

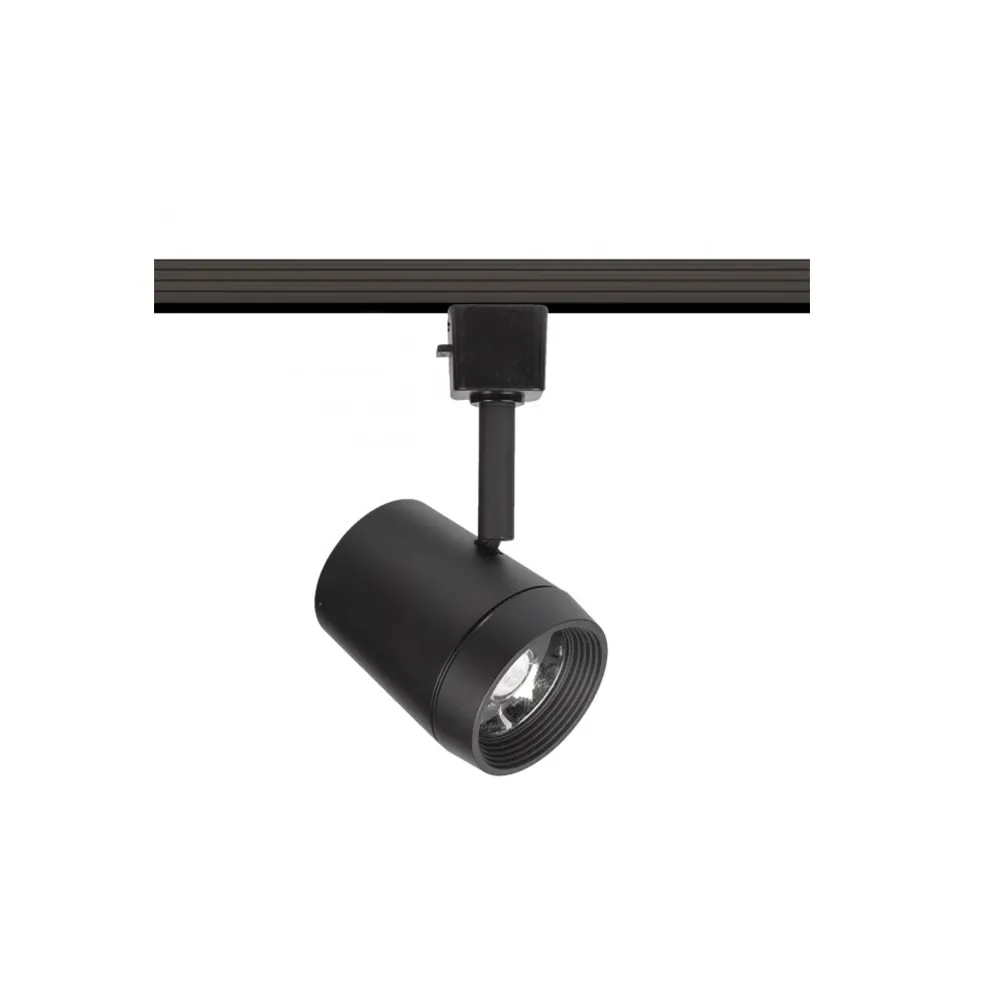

Name: LED OCULUX Track Heads
SKU: 2165755

Product Details ＋

Ideal for residential spaces and lower-mounted commercial applications, the OCULUX LED Track Heads combines high-output COB LED with easy-to-use films for three separate beam spreads, along with an adjustable base to accommodate a variety of user preferences. With the driver and thermal/optical management encased in the die-casting housing, this compact unit offers a clean, efficient, versatile design that works with almost any decor.

Optional are available. sold separately.

Key Features

3 beam angle options included:
- 50° beam film pre-installed
- Interchangeable 30° film supplied
- Remove film for 17° spot beam
Integral driver and high-output COB LED
Outperforms halogen 65W MR16
350° horizontal and 90° vertical aiming
UL, ETL & cETL, Dry Location Listed
ENERGYSTAR
Title 24 JA8 Compliant

Applications

Tradeshow Booth
Exhibit and Displays
Retail Store Lighting
Commercial Application

Specifications

Brightness	890 Lumens
Power (Watts)	11 watt
Input Voltage	120V AC
LED CCT	3000K
CRI	90
Operating Temperature	-4°F to 104°F (-20°C to 40°C)
Dimmable	Yes, ELV or Forward Phase: 100-10%
IP Rating	IP20
Environment	Indoor Use - Dry Location
LED Beam Angle	17°, 30°, 50°

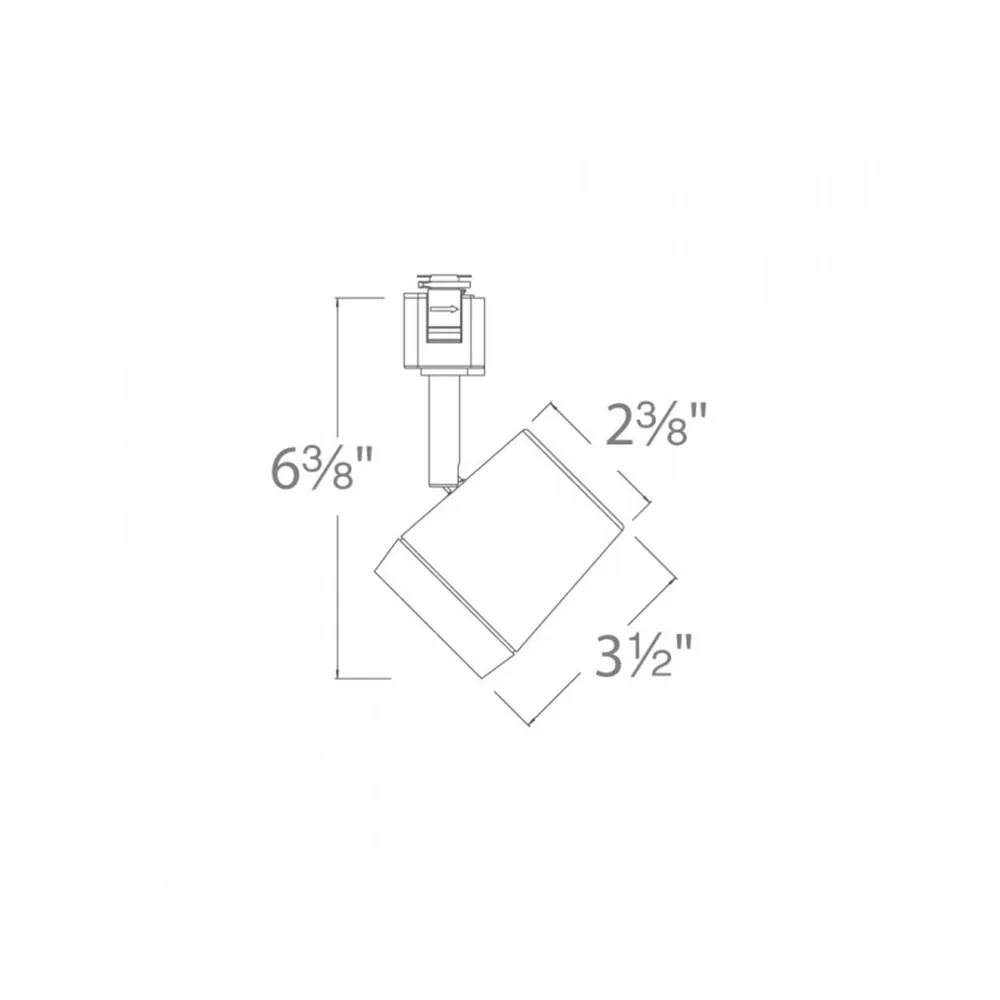

Track Head Length	3.5 in / 89 mm
Track Head Diameter	2.375 in / 60 mm
Track Head Max Ext.	6.375 in / 162 mm
Finish	Black, White, Brushed Nickel, or Dark Bronze
Manufacturer	Elumalight
Rating	ETL Listed
Avg. Lifetime	± 30,000 - 50,000 hours
Warranty	2 years limited
