Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Backlighting | 70,000 Hour LED Backlight |
| Depth | 1.252" (31.8mm) |
| Dimensions | 128 x 102 x 31.8 mm |
| Display Colors | 65,536 Color |
| Display Resolution | 480 x 272 Pixels |
| Display Size | 4.3 Inch Display |
| HMI Type | Touch Screen HMI |
| IP Rating | IP67 |
| Maximum Operating Temperature | 55 C |
| Minimum Operating Temperature | -20 C |
| Number of Ports | 5 Port |
| Primary Type | HDMI Touch-Screen |
| Product Type | HMI |
| Series | |
| Standards | UL 508 |
| Supply Voltage | 12-24VDC VDC |
| Technology | TFT LCD Display |
| Temperature Operating Range | -20 to 55 C |
| Width | 5.039" (128mm) |
Overview

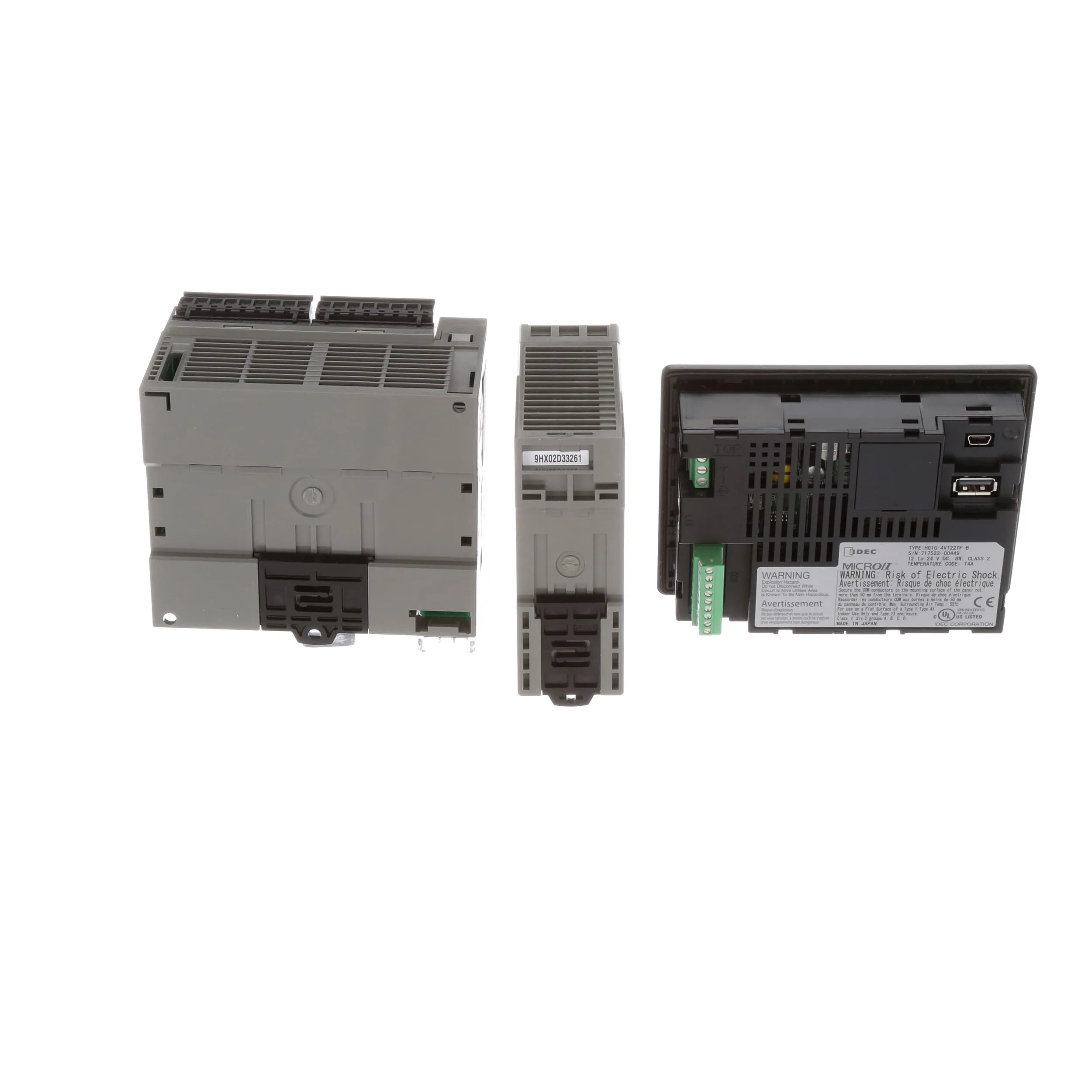

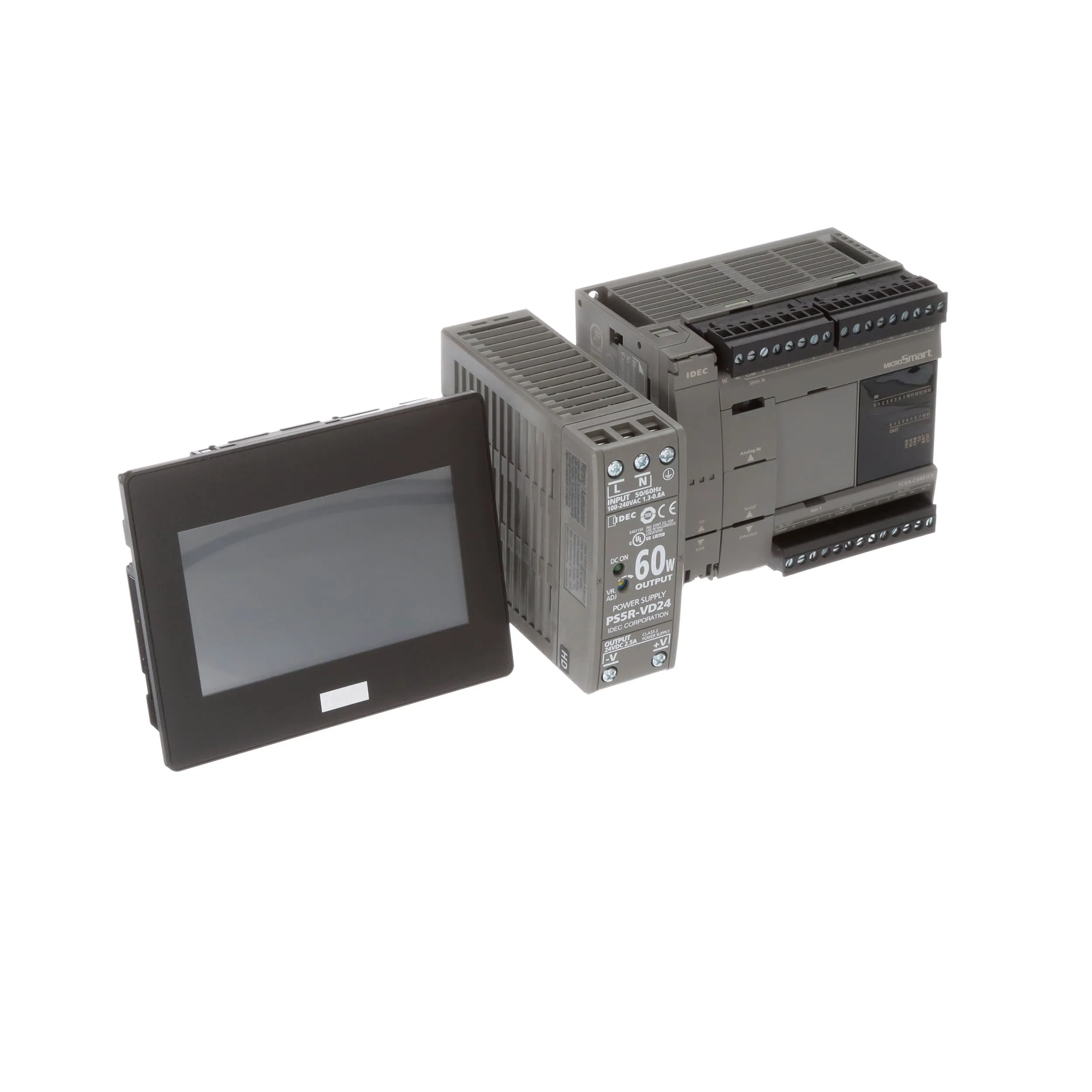

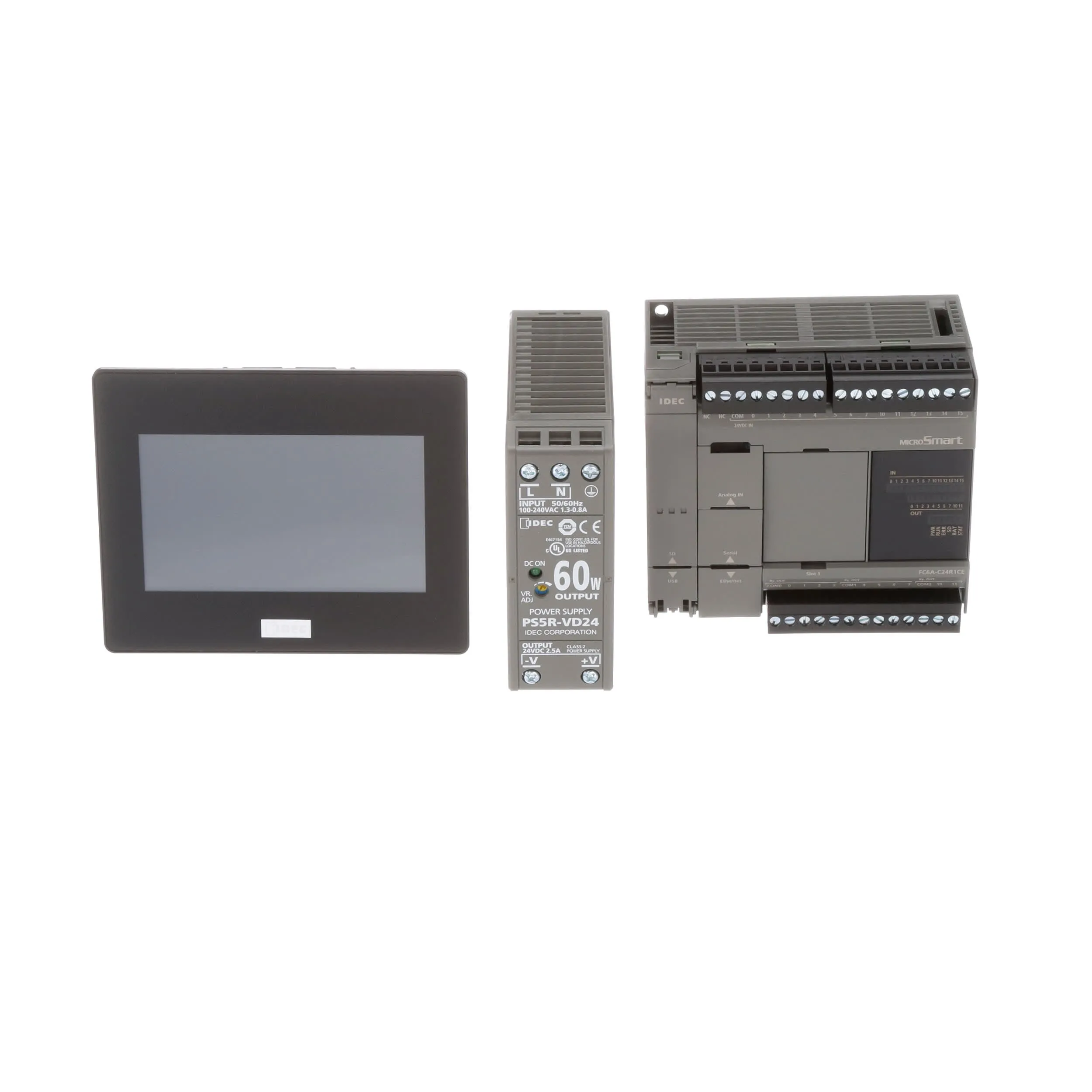

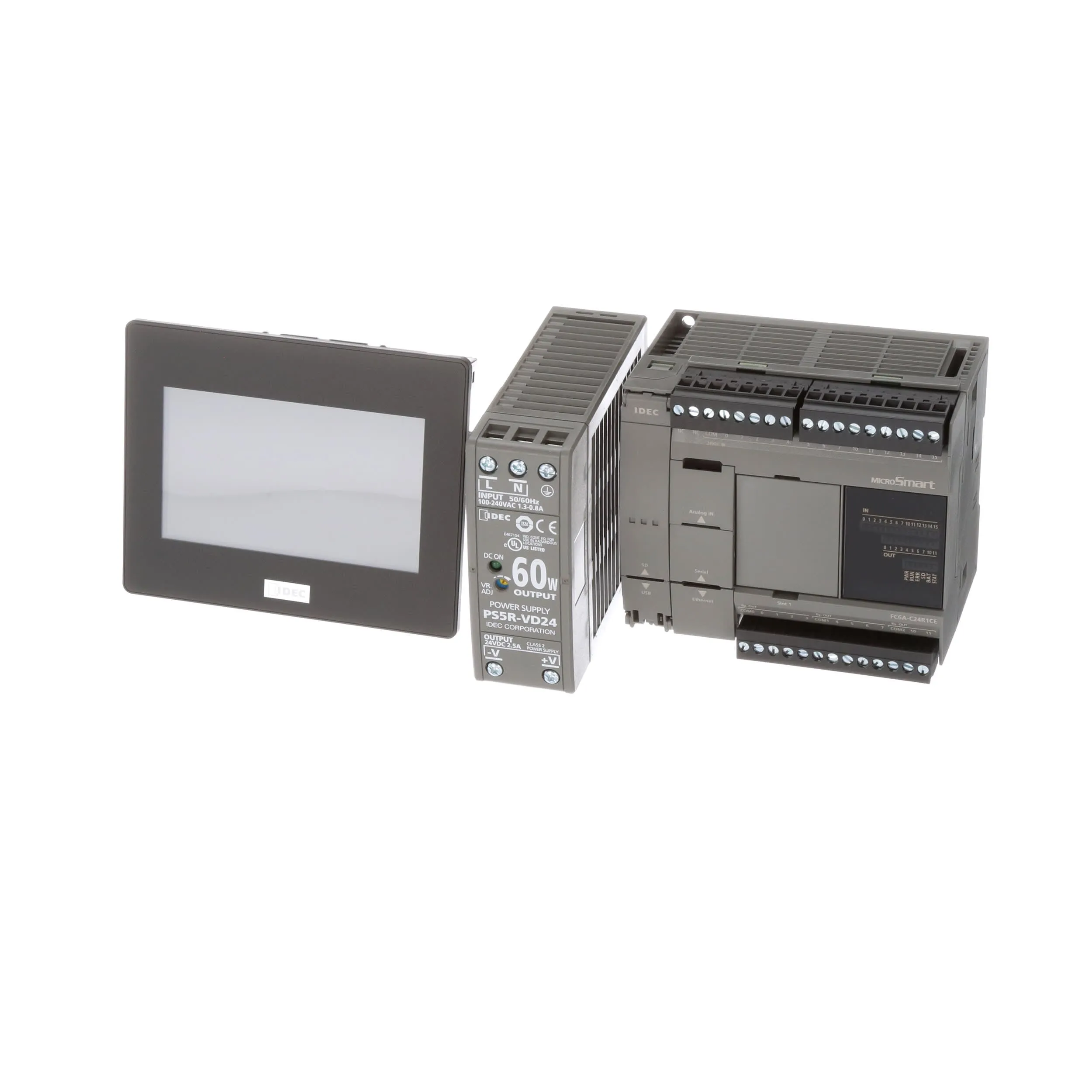

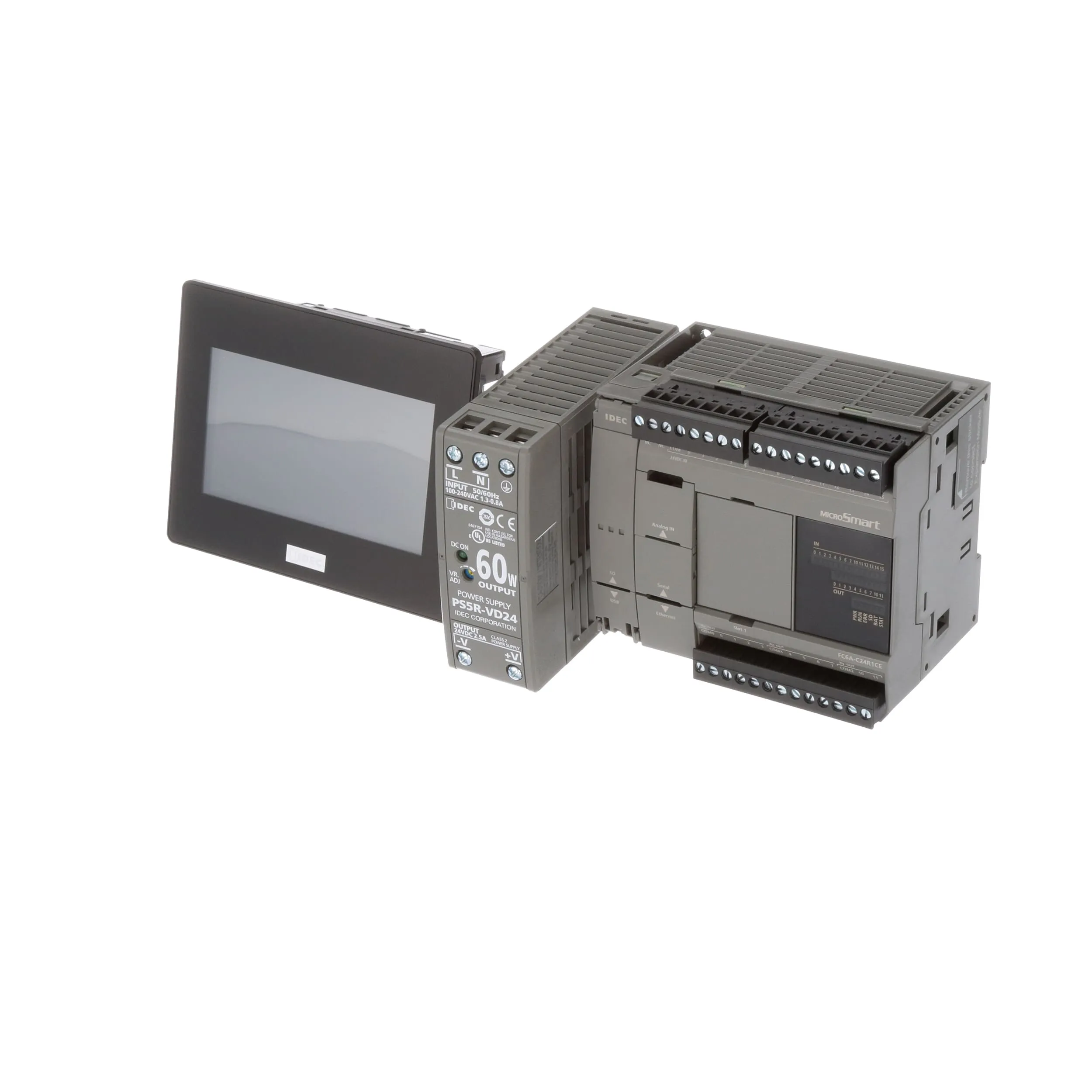

IDEC HG1G Series - 4.3-inch Operator Interface
The super-bright, compact 4.3-inch HG1G has most of the features and functionalities found in a larger screen, including monitoring and control via PC, tablet or smartphone. It supports multiple protocols simultaneously, FTP Server function and best-in-class LED backlight life of 70,000 hours. HG1G can be mounted in portrait or landscape to fit your needs. It also supports a wide range of operating temperatures from -20 to 55 degrees C, and is rated IP66F/IP67, Type 4X & Type 13, and Class 1 Div 2. It's flexible and small enough to fit in a tight space, and priced to fit a tight budget.
