Product Details
＋

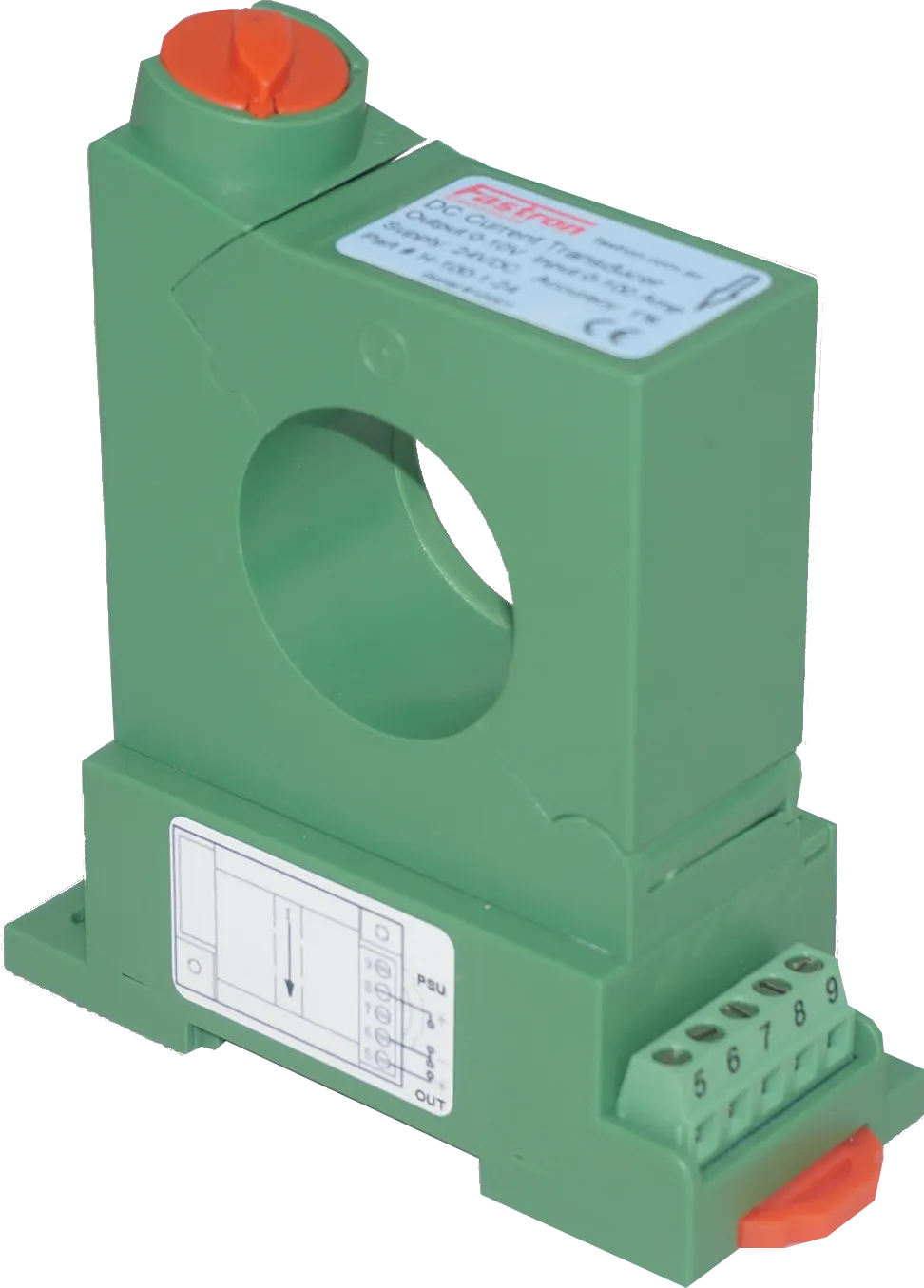

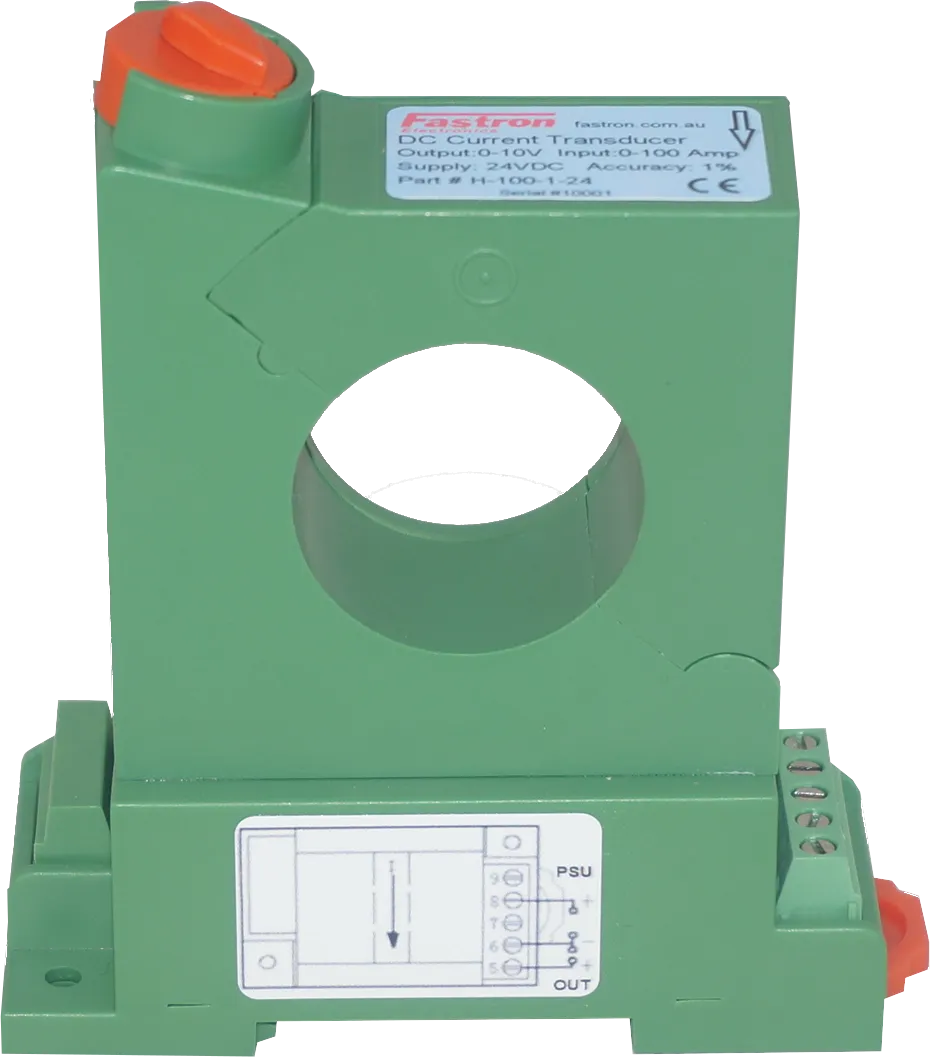

H-5-2-24, Split Core Hall Effect DC Current Transducer, 0-5 Amp DC, 4-20mA unipolar output, 31mm aperture, 24VDC supply
Compact and versatile Split Core DC current sensor, 0-10 Amp DC, 4-20mA Unipolar Output
Features

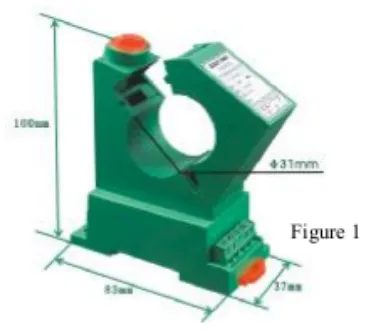

- ⌀31mm Aperture
- Split Core
- DC Unipolar Measurement
- 4-20mA analogue output
- Busbar, or DIN Rail Mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Mount
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will not drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| Fastron Part Number | H-5-2-24 |
| Technology | DC Hall Effect Current Transducer with Process Output |
| ROHS | Yes |
| Supply Voltage | 24VDC |
| Nominal Current (DC) | 0-5 Amp |
| Response Time | < 200mS |
| Output | Unipolar 4-20mA Analogue |
| Isolation | 2.5kV (AC, 50Hz, 1 min) |
| Bandwidth | DC |
| Mounting Style | DIN Rail Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | Elevator Screw |
| Unit Weight | 120g |
| Factory Pack Qty | 6 |
