Product Details
＋

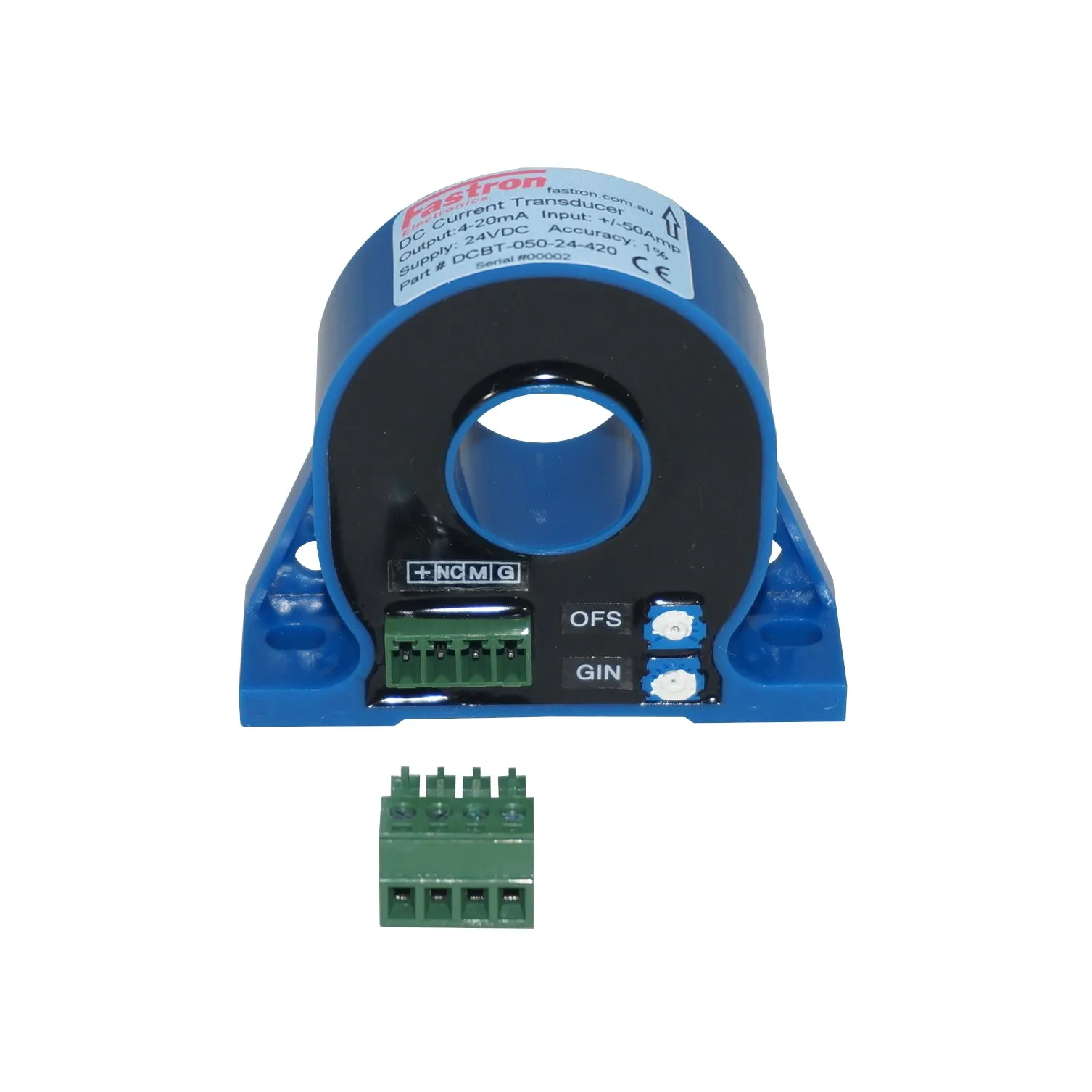

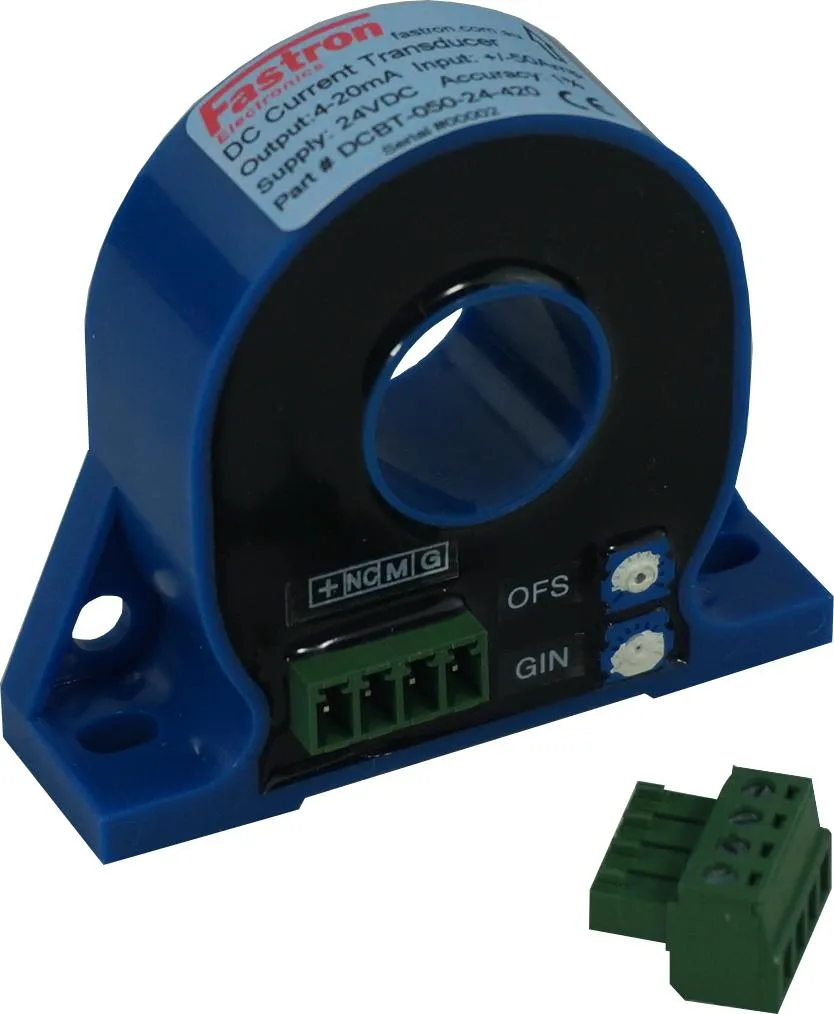

DCBT-100-24-420, Hall Effect DC Current Transducer, /-100 Amp DC, 4-20mA bipolar output, 24VDC supply, 20mm Aperture
Compact and versatile Split Core DC current sensor, /-100 Amp DC, 4-20 mA Bipolar Output
Features
- ⌀20mm Aperture
- DC Bipolar Measurement
- 4-20mA analogue output
- Busbar, or panel mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Kit available
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will not drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| Fastron Part Number | DCBT-100-24-420 |
| Technology | DC Hall Effect Current Transducer with Instant Output |
|
|
Yes |
| Supply Voltage | 24VDC |
| Nominal Current (RMS DC) | /-100 Amp |
| Response Time | < 1uS |
| Output | Bipolar 4-20mA |
| Isolation | 2.5kV (AC, 50Hz, 1 min) |
| Bandwidth | DC |
| Aperture | 20mm |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | Molex 4 Pin |
| Unit Weight | 120g |
| Factory Pack Qty | 6 |
