Product Details
＋

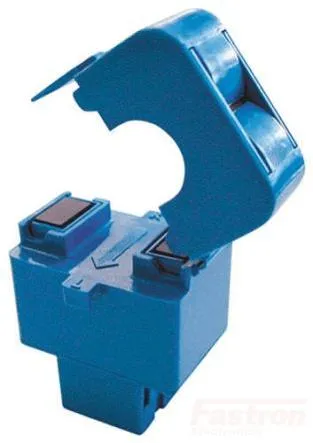

LEM AT 150 B10, Split Core AC Current Sensor, Self Powered, 150 Amp, Average RMS 10V output
Compact and versatile Split Core AC current sensor, 150 Amp Average RMS 0-10V output
Features
- Split Core
- Average RMS output
- 0-10V voltage output
- Cable Mounting
- Self Powered
- Isolated plastic case recognised according to UL94-V0
Advantages
- Large aperture for cable up to ? 16mm
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Mount
Applications
Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
Data Loggers
Self Powered. Will not drain data logger batteries
Panel Meters
Simple connection displays power consumption
Specification
| LEM Part Number | AT 150 B10 |
| Technology | AC Current Transformer with Process Output |
| ROHS | Yes |
| Supply Voltage | 24VDC @ 30mA |
| Nominal Current (RMS) | 150 Amp |
| Maximum Measurement Current (RMS) | 180 Amp |
| Output | 0-10V (Average) RMS |
| Isolation | 5kV (AC, 50Hz, 1 min) |
| Bandwidth | 30-2000Hz |
| Mounting Style | Din Rail mount or Busbar mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1.5% |
| Aperture | ? 16mm |
| Termination Style | Screw Terminal Block |
| Approvals | CE,UL,ROHS |
| Unit Weight | 90g |
| Factory Pack Qty | 6 |
