Product Details
＋

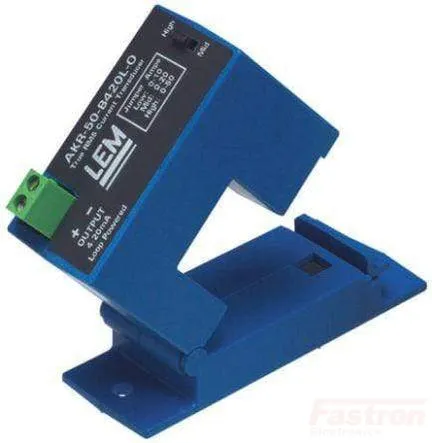

LEM AK 50 B10 Series Split Core AC/DC Hall Effect Sensor
Compact and versatile Split Core AC current sensor, selectable 10, 20, 50Amp Average RMS. Choice of output types: 4-20 mA, 0-5 V or 0-10 V
Features
- Split Core
- Average RMS output
- 0-10V voltage output
- Busbar, or panel mounting
- Isolated plastic case recognised according to UL94-V0
Advantages
- Large aperture for busbar/cable up to 21.7mm sqr
- High isolation between primary and secondary circuits
- Easy installation
- DIN Rail Kit available
Applications
-Automation Systems
Analogue current reading for remote monitoring (e.g. Motor)
-Data Loggers
Self Powered. Will nto drain data logger batteries
-Panel Meters
Simple connection displays power consumption
Specification
| LEM Part Number | AK 50 B10 |
| Technology | AC Current Transformer with Process Output |
| ROHS | Yes |
| Supply Voltage | Self Powered |
| Nominal Current (RMS DC) | 10,20,50 Amp Selectable |
| Maximum Measurement Current (Peak) | 17,34,85 Amp |
| Output | 0-10V Average RMS |
| Isolation | 3kV (AC, 50Hz, 1 min) |
| Bandwidth | 50-60Hz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | 2 x UNC8 Cylindric Head |
| Unit Weight | 120g |
| Factory Pack Qty | 6 |
